The PowerScan Tool is the most revolutionary circuit tester to date. Featuring AVOmeter, test light, built-in flashlight, short circuit indicator, relay/component tester, continuity tester and bad ground indicator, the PowerScan is truly the ultimate in power and affordability, allowing users to check circuitry in one single step. An absolute must for every technician looking for a fast and accurate solution to electrical system diagnostics.
Powerscan PS100 Electrical Circuit Tester User Manual
Features:
Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation
Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip
With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
Simultaneously uses the hot lead and the ground lead to activate components right in your hand
Instantly identifies positive, negative and open circuits
Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses
Instantly checks continuity of switches, relays and diodes
Circuit breaker protected
Built-in Flashlight enables you to work in the dark
Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment

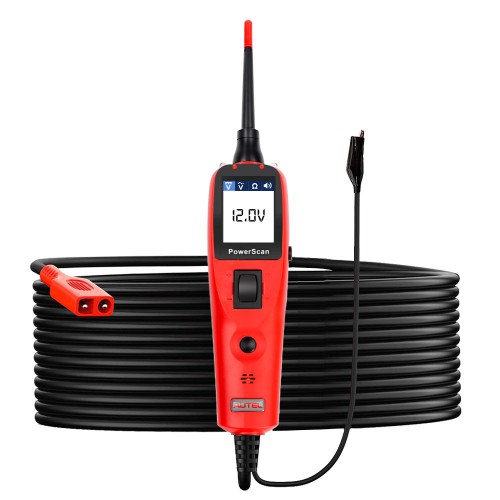

20ft (extendable) cable provides excellent accessibility to test along the vehicle
Extremely easy to use and highly reliable
Benefits of the PowerScan PS100
Specifications:
| Display: | TFT color display (160 x 128 dpi) |
| Operating Temperature: | 0 to 60°C (32 to 140°F) |
| External Power: | 12.0 or 24.0 V power provided via vehicle battery |

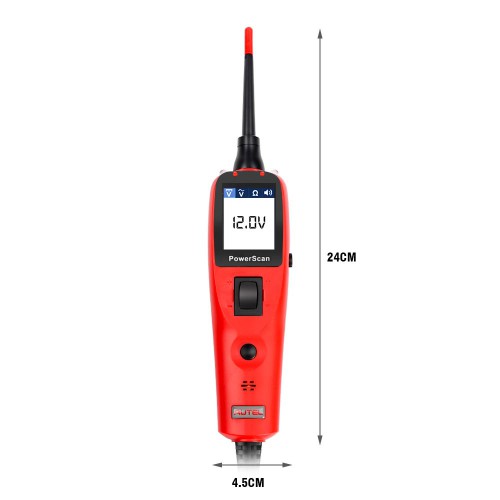

| Length\Width\Height: | 126mm(4.96")\46.5mm(1.83")\35mm(1.38") |
| NW: | 0.105kg (0.23lb),GW: 0.726 kg(1.6lb) |
There are four modes to diagnose the electrical systems, which can be accessed by depressing the Mode Button and cycling through each
one.
DC Voltage
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the DC voltage with a resolution of 0.1 volt.
This function is invaluable when working in bright areas where LED illumination alone is not sufficient. The audio feature may be disengaged when desired, such as for applications where the tool will be connected to circuits for long periods of time and the audio could become annoying.
Measuring resistance
By using the extra mass cable, the resistance across plugs and switches can be measured.
Consumer testing
With the +/- button on the tester, the consumer can be checked by tensioning it directly.
Circuit test (plus switched)
By directly tensioning the trailer plug, the complete circuit can be tested.
Circuit test (mass switched)
Components connected to mass, such as a claxon, can easily be controlled by massaging the claxon via the tester.

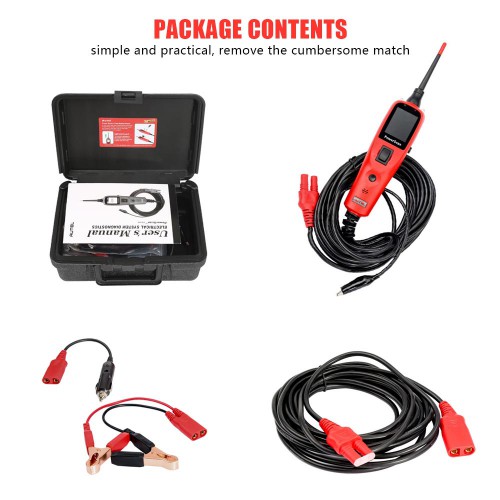

Package list:

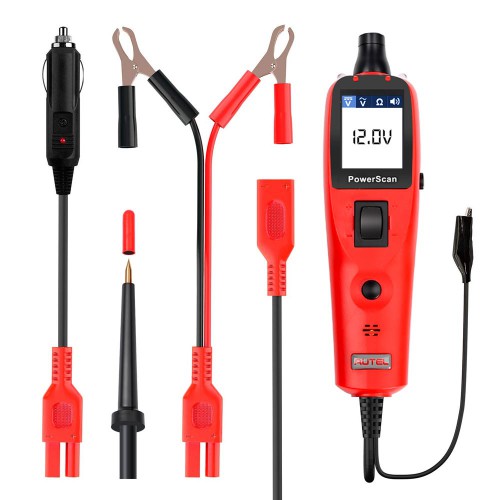

1 × PowerScan PS100
1 × Rugged blow molded case
1 × 20ft. extension cable1 × Probe tip
1 × Battery hookup clips
1 × Cigarette lighter adapter
1 × User's Manual
