2000+ MCU component types, 440+ EEPROM component types, 40+ Engine ECU component type
Warm Notice:
1. XP400 Pro is compatible with IM100 / IM600. The only thing the IM100 and IM600 will not have when used with XP400Pro is the 4 channel Labscope software and AutoAuth)
2. XP400 Pro does NOT support Read/Write IC Card function. The "IC Card Induction Area" was also removed from XP400 Pro
Compared to the original XP400, the newer XP400Pro:
* is a more stable EEPROM device
* compatible with more chip types: EEPROM, MCU, Immobilizer
* does more BMW
* does more Benz
* does Key Read/Write
Description:
Autel XP400Pro is a replacement for XP400. It adds more functionality for BMW, Merc-edes-Benz, as well as EEPROM reading. With the new protocols, the end-user will be able to read over 2000 (chips, components, devices) types including EEPROM and MCU Read, additional Odometer Read/Write, and more. Also, added functions for EWS3, W209, NEC, and more.
ADVANCED KEY PROGRAMMING VEHICLE COVERAGE when combined with XP400PRO:
Benz
* One-tap Key Programming via OBD
* 3rd Generation IMMO CAN-Line/ K-Line Add Key, All Key Lost
BMW
* Smart IMMO Programming (support EWS3/ 4, CAS 1/ 2/ 3/ 4, FEM/ BDC)
* Add Key/All Key Lost
Volks-wagen/ Au-di
* One-tap Online Programming
* Add Key/All Key Lost Via OBD for 2013 - 2020 Models
GM
* Read IMMO Password, Add Key/ All Key Lost up to 2020
Frd
* Add Key/All Key Lost (No PIN Needed) up to 2020
Mazda
* Add Key/All Key Lost (No PIN Needed) up to 2020 FCA
* Read IMMO Password, Add Key/All Key Lost up to 2020
Renault
* Add Key/All Key Lost (No PIN Needed) up to 2020
LandRover/Jag-uar
*Add Key/All Key Lost up to 2019
Volvo
* Semi-smart Key Learning via OBD up to 2018
* Smart/Blade/Fobik Key Learning via Dump
Powerful IMMO Functions:
1. Auto Detect Make/ Model/ Year/ System
2. Read PIN (All Key Lost)
3. Key Learning
4. IMMO ECU Reset/Adaption
5. IMMO ECU Refresh/Coding
6. Remote Learning
7. AUDI Q5/ A4/A5 2015-2017 Key Learning
8. VW MQB Key Learning
9. BMW FEM/BDC Key Learning and Adaption
10. BMW CAS4 Key Learning and Adaption
11. Benz Key Learning
12. 2015-2018 Land Rover & Jaguar write key via dump
13. Volvo Smart Key Learning/ knob-style smart key
Advanced Programming Functions:
1. EEPROM Read/Write
2. MCU Read/Write
3. Key Programming
4. Merc-edes Key Read/Write
5. Remote Frequency Detect

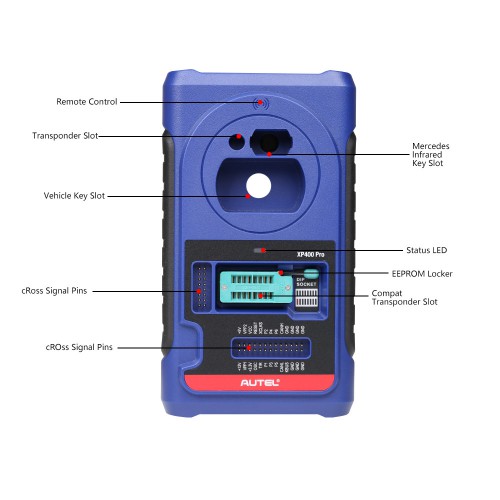

Please note that the product does NOT support Read/Write IC Card function. The "IC Card Induction Area" was also removed from XP400 Pro (please check the below illustration).
Comparison Table for XP400, XP400 Pro and Xhorse VVDI Prog:
XP400 vs XP400Pro
XP400 vs XP400Pro
|
Features
|
XP400
|
XP400PRO
|
|
EEPROM read/write
|
330 chip types
|
445 different chip types newly added support（AM29FXXX series，MB29FXXX series）
|
|
MCU read/write
|
1541 chip types
|
2067 chip types
|
|
Engine ECU read/write
|
40 chip types
|
41 chip types add write support for SIMTEC76(AM29F800BB)_WRITE
|
|
Immoblizer ECU read/write
|
168 chip types
|
181 chip types
|
|
Odometer read/write
|
read odometer module 9 types
|
read odometer module 171 types (update in July)
|
|
Airbag read/write
|
read airbag module 5 types
|
read airbag module 5 types
|
|
Frequency detection
|
315/433/868MHz (BMW 868MHz is not supported)
|
315/433/868MHz
|
|
Key read/write
|
support
|
support
|
|
Key unlock
|
N/A
|
support 11 key types
|
|
Write key via dump
|
Mitsubishi, suzuki, fiat, landrover,Juguar
|
Mitsubishi, suzuki, fiat, landrover, Juguar
|
|
Easy to use/stability
|
1.menus are too value and can't select intuitively
2. with high-definiton wiring diagrams (not sufficiently covered)
|
1.Stability of key read/write, chip read/write, IR key read/write are greately enchanced.
2.menus are too vague and can't select intuitively
3.with high-definiton wiring diagrams (not sufficiently covered)
|
|
Work with tablet
|
Benz：all models key programing functions
|
Benz:all models key programing functions
|
|
BMW：CAS4/CAS4+via OBD
|
BMW：CAS4/CAS4+ via OBD
|
|
VW/Audi/Skoda/Seat/Fiat/Renault/Fiat: to make dealer key
|
VW/Audi/Skoda/Seat/Fiat/Renault/Fiat: to make dealer key
|
|
Landrover/Jaguar：write key via dump for 2015+
|
Landrover/Jaguar：write key via dump for 2015+
|
|
Volvo：smart key&toothless knob-style smart card via dump
|
Volvo：smart key&toothless knob-style smart card via dump
|
|
Mitsubishi, suzuki, fiat, landrover write key via dump
|
Mitsubishi, suzuki, fiat, landrover write key via dump
|
|
|
BMW：EWS3 key programming
|
|
|
Benz：W209 EIZ read/write/erase
|
|
|
Benz：NEC OEM key programming
|
XP400Pro Adds Support for Following Chips:
EEPROM-->>AMD-->>AM29FXXX series chip
EEPROM-->> FUJI-TSU-->> MB29FXXX series chip
EEPROM-->> ST-->> M29FXXX series chip
Engine control module-->> ST-->> M29FXXX series chip
IMMO-->> BE-NZ-->> ESL_W209_W906(Moto-rola) read/write/erase function
IMMO-->> BM-W-->>EWS3 module read/write function
REMOTE_RENEW (renew key)-->> NEC-->> V51 and V5 chip read/write/erase
XP400 Pro Adds Support for Following IMKPA Accessories (Needs to Buy IMKPA Accessories Separately)
APB113 PCF79XX adaptor board
APB114 EWS3 adaptor board
APB115 NEC adapter board
APB118 NEC ELV adaptor board
APB119 TB28FXXX adaptor board
APB120 TMS370 adaptor board
APB121 AM29FXXX adapter board
APB122 AM29FXXX adaptor board1
APB123 AM29FXXX adaptor board2
APB126 M35080/D80 adaptor board
APB127 MC68HC0(7)05BXX adaptor board
APB128 MC68HC05X32 adaptor board

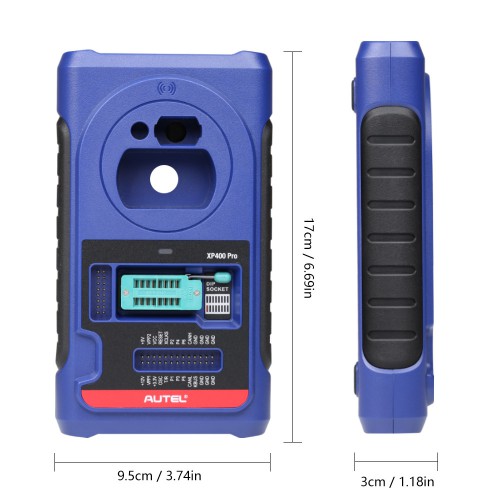

Autel XP400 Pro Specifications:
Operating Temperature: -10℃ ~ 70℃ (14℉ ~ 158℉)
Storage Temperature: -20℃ ~ 85℃ (-4℉ ~ 185℉)
Port Type: B-USB, DB26, DC12
Input Voltage: 5 VDC, 12VDC
Operating Current: < 500 mA
Maximum Consumption: 2.5 W
Package includes:
1pc x XP400 Pro Main Unit
1pc x APB129 – EEPROM Adapter
1pc x APA002 – EEPROM Socket
1pc x APB125 – Mercedes Infrared Collector
1pc x APB103 – MCU_PLCC52 Adapter
1pc x APB104 – MCU_FQFP64 Adapter
1pc x APB105 – MCU_FQFP80 Adapter
1pc x APB106 – MCU_FQFP112 Adapter
1pc x APB107 – MCU_FQFP144 Adapter
1pc x APB108 – MCU_FQFP176 Adapter
1pc x APB109 – MCU_FQFP32 Adapter
1pc x APB110 – MCU_FQFP48 Adapter
1pc x APB111 – MCU_SO28 Adapter
1pc x APA101 – Spare Signal Cable
1pc x APC101 – USB Cable (Standard USB –Type B USB)
1pc x APA103 – EEPROM Clamp
1pc x APA107 – ECU Cable
1pc x APA108 – MCU Cable
1pc x APA109 – MC9S12 Cable
1pc x Dupont Line
