Product Description
CG100X is Covering 90% of models and modules on the market, including American, German, French, European, Korean, Japanese, Italian, domestic series, as well as engineering vehicles and motorcycles, it is powerful and the first choice for opening a store. Stable and safe, convenient and intelligent.
What is CG100X?

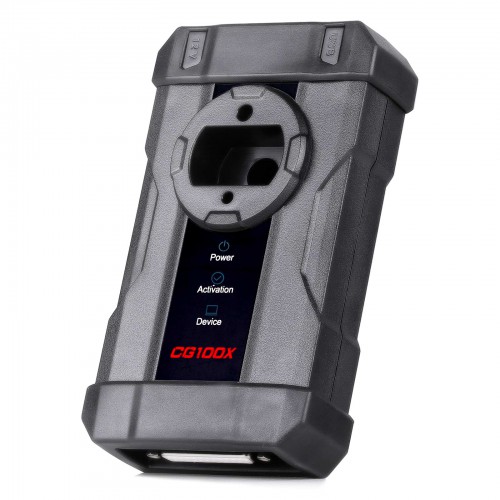

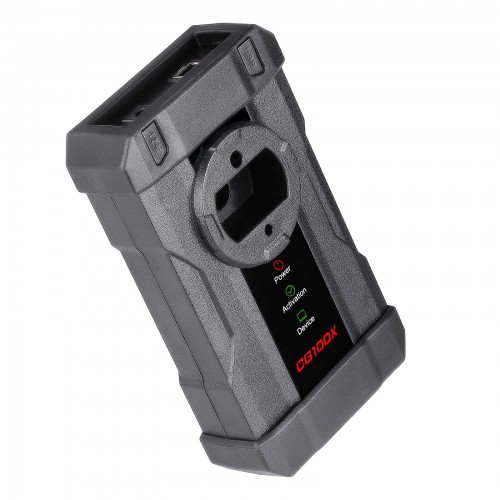

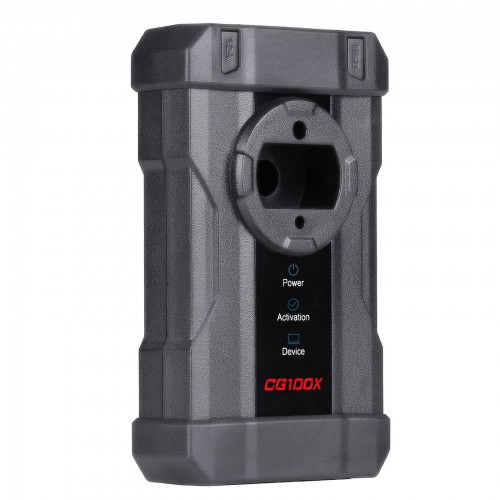

CG100X is a new generate smart programmer from CGDI. CG100X will do airbag reset, mileage correction, eeprom & chip reading. It covers 90% of models and modules on the market, including American, German, French, European, Korean, Japanese, Italian, domestic series, as well as engineering vehicles and motorcycles.
Highlights:
1. Mileage adjustment
2. Airbag repair
3. Body failure repair
4. BCM module read and write
5. Reading and writing of various non-encrypted chips
6. Writes key for BMW Land Rover
7. Software is simple and easy to use
8. 1 Year free update.
9. Supports VAG MQB read NEC35XX immo data & mileage repair
10. Supports VAG MQB R7F7014xx RH850 5A, 5C and 5D cluster mileage correction (need D1 adapter)
12. Supports Benz 2019- HU6 R7F701403 (encrypted) instrument cluster mileage correction
11. Adds Toyota steering angle sensor repair function
12. Language: English/ Chinese
13. Software is frequently updated online, current version is V1.9.9.0

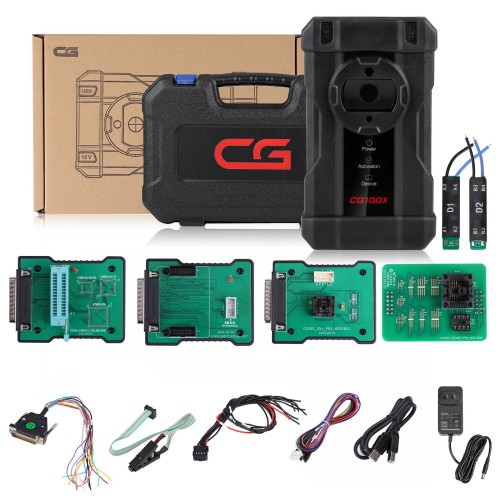

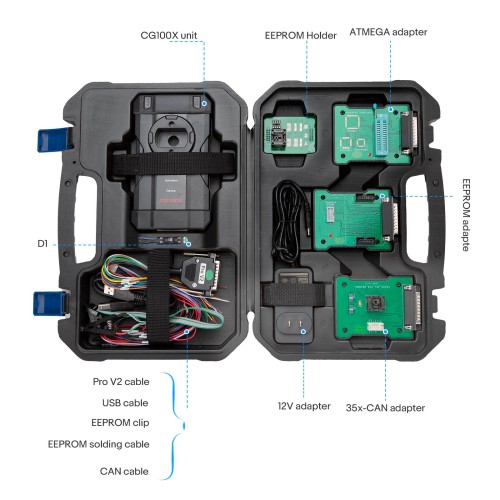

What will you get?
1pc x CG100X unit
1pc x EEPROM holder
1pc x EEPROM adapter
1pc x PRO cable
1pc x USB cable
1pc x CAN cable
1pc x EEPROM solering cable
1pc x EEPROM clip
1pc x adapter
1pc x EEPROM adapter
1pc x Pro V2 cable
1pc x D1 adapter
1pc x D2 adapter (starts from June 2025)
How to activate brand new CG100X tool?
CG100X Functions List:
1. Meter mileage adjustment
The software is embedded with intelligent algorithms, and the mileage data is automatically analyzed. It supports more than 4,600 car models, with a success rate of over 95%. It is closely following the market and is being upgraded in real time. Newly added VW MQB mileage repair: Golf, Magotan, Lavida, T-Roc, Tayron, Bora, Sagitar, Lamando, CC, Variant, Teramont, Skoda, Octavia, Kodiak and other models. (Self-contained algorithm.)
2. Airbag computer reset
Contains more than 4,500 ACU models, dedicated to solving airbag faults, analyzing the cause of the light, perfectly clearing the fault code, giving car owners peace of mind, and more models are continuously added.
3. Body control module repair
Focus on automotive electronic faults, good at repairing various common faults, support engine computer, steering angle, footwell module, keyless entry module, audio amplifier, gearbox computer, 48V light hybrid lithium battery, 12V lithium battery, etc. A body computer that provides vehicle data and assists repairmen in resolving vehicle failures.
4. Accessory clone replacement
Solve the pain points of the repair shop, a single device can replace accessories, data cloning, analysis and repair, one-click operation without asking for help.
5. Various chip data reading and writing
Covers more than 90% of automotive chips, supports more than 1,800 models, reads, modifies, writes, erases, partitions and saves to meet daily car repair needs, and can also use the browser that comes with the software to analyze data.
Octal Chip (EEPROM):
24 series, 25 series, 35 series, 93 series, 95 series, X50 series, S29 series, RH series, CAT10 series, CR series.
Fujitsu
MB90 series, MB91 series, MB96 series
Microchip
PIC18F series
Texas Instruments (TI)
TMS series
NXP (NXP)
S32K1 series
Motorola/Freescale
9S08 series, 9S12 series, HC908 series, HC912 series, MAC series, MPC56 series
Atmel
ATMEGA series
Renesas
H8SX series, M32R series, R5F10D series, RH850 series, V850 series
Infineon
TC series, XC series
Saiyi Law (ST)
SPC series, ST10F series, STM32F series, STM8 series
Cypress/Spansion Semiconductor (Cypress/Spansion)
S6J series
6. Car key matching
Support BMW CAS1-CAS44 series and Land Rover models, automatically display the key ID and usage status, and assist the locksmith to complete the key matching work.
CG100X Features:
1. Top ten accessories, functional classification
In addition to the main unit, it comes with 10 kinds of accessories, and the functions do not overlap; the DB25 connection method is used, which is more stable and safe; the wire number is clearly marked to avoid welding errors.
2. Reading and writing speed up, status monitoring
Compared with conventional programmers on the market, CG100X has an overall speedup of more than 120% for chip reading and writing, and some chips can reach 200%. The operation is monitored in real time to protect data and chips. For large-capacity eight-pin chips, the speed of reading and writing is increased by more than 500%, shortening the operation time, so that customers no longer have to wait, and truly achieve twice the result with half the effort.
3. Eight pins without dismantling, pin detection
Supports eight-pin chips without dismantling, avoiding the risk of back and forth soldering. Strong drive capability, free from communication interference. Provide pin detection, red means poor contact, green means good contact, visually display the pin status. It is more compatible with Honda instruments without dismantling, and provides wiring diagrams to avoid motor damage caused by disassembling the pointer. More disassembly-free
wiring diagrams are continuously added.
4. Intelligent algorithm, real-time upgrade
Automatic analysis of instrument kilometers, the error does not exceed 32Km, some hybrid models support modification of HEV+EV, engineering vehicles can modify working hours, and more than 50% of trucks provide fuel consumption modification.
Airbag Computer Reset Provides Two Solutions: Fault Clearing and Data Overwriting.
Fault clearing:
The original data is stored in the chip, and the fault code is clear, such as collision fault or air curtain fault. If you choose this repair method, only the relevant fault data in the chip will be cleared, and other data areas will not be affected.
Data Coverage: When we are not sure how many jobs we have received and the data is not the most original, we can choose this repair method. After replacing all the data in the chip, a fault code may be reported due to the different configuration of the vehicle, and we need to reprogram and match. Focus on the development of R7F7 instrument, D70F instrument, SPC instrument and new airbag computer, so that 100% of the eight-pin chip can be disassembled, and is committed to covering 99% of the models and modules in the market.
5. Hardware upgrade, data loss prevention
Although CG100X and CG100 are different in one word, the equipment is completely different. CG100X adopts the industry's ideal architecture design and is equipped with the world's most advanced MCU. It is known as a fighter among single-chip computers, and its operation is more stable and safer. The advantages in hardware come from market demand. We attach great importance to customer feedback and suggestions. CG100X will support new modules and new chips more easily.
Adopting DB25 communication interface, compact design, stronger driving ability, OBD mode can be upgraded later, and supports CAN, LIN, K and other automotive communication protocols.
6. Easy access, automatic search
● Open the software without plugging in the device, which is convenient for viewing the vehicle model and functions;
● The car model search automatically matches special characters such as spaces and bars, regardless of case;
● The general programmer search mask directly displays the chip;
● In the list interface, click to enter and press Enter to enter;
● Support picture scaling, display file open/save path.
CG100X Latest Update Information:
CG100X Software Free Download
CG100X V1.9.9.0 (2025.12.11):
Added 5 models to the India advanced version.
Added 39 models to dashboard.
Added 4 models to airbag.
Added 14 models to read-write.
CG100X V1.9.6.0 (2025.12.01):
Optimized Supported Models for Toyota and Lexus S6J3001/R7F701401/R7F701441.
1. Added 87 models to dashboard.
2. Added 4 models to airbag.
3. Added 11 models to read-write.
CG100X V1.9.6.0 (2025.10.21):
1. Added 26 models to dashboard.
2. Added 17 models to airbag.
3. Added 18 models to read-write.
