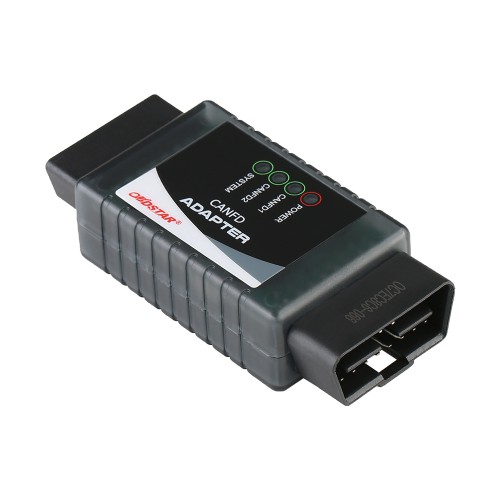

OBDSTAR CAN FD Adapter for X300 DP Plus/ X300 PRO4/ Key Master DP/ OdoMaster/ P50/ DC706
Advantages:
1. Portable Design
2. Easy Operation
3. High Performance
What is OBDSTAR CANFD Adapter?
Designed for diagnosing ECU systems of cars meeting with CAN FD protocols.
It's used with OBDSTAR's tablets series products such as X300 DP Plus, Key Master DP Plus, X300 Pro4, OdoMaster and P50 (for Hyundai Kia Toyota etc airbag). Its high performance and easy operation.
This is currently the only after market tool in the World that will allow the user to read pin codes, add duplicate keys, or program keys when all keys are lost on each of the following models:
|
Brand
|
Models
|
Year
|
Function
|
|
Cadillac
|
Escalade
|
2021-
|
Proximity key programming
|
|
CT4
|
2021-
|
|
CT5
|
2021-
|
|
GMC
|
Yukon
|
2021-
|
Proximity key programming
|
|
Sierra
|
2021-
|
|
Denali
|
2021-
|
|
Buick
|
Envision
|
2021-
|
Proximity key programming
|
|
GLY (LSY)
|
2021-
|
|
Chevrolet
|
Cavalier
|
2021-
|
Proximity key programming
|
|
Tahoe
|
2021-
|
|
Silverado
|
2021-
|
|
Suburban
|
2021-
|
|
Trax/Tracker 4A
|
2020-
|
Blade/Proximity key programming & oil/airbag reset
|
|
Equinox
|
2020-
|
|
ONIX
|
2020-
|
|
S10
|
2020-
|
|
SPIN
|
2020-
|
|
Pontiac
|
Montana
|
2020-
|
Blade/Proximity key programming
|
|
Kia
|
Sorento
|
2021-
|
|
|
Hyundai
|
95910-CW000 Airbag
|
2021
|
Airbag reset
|
|
95910-CW100 Airbag
|
|
95910-CZ000 Airbag
|
|
95910-N7010 Airbag
|
|
95910- N7030 Airbag
|
|
95910- N7050 Airbag
|
|
95910- N7070 Airbag
|
|
95910- N9010 Airbag
|
|
95910- N9050 Airbag
|
|
95910- N9060 Airbag
|
|
95910- N9080 Airbag
|
|
95910- N9110 Airbag
|
|
95910- P0000 Airbag
|
|
95910- P0010 Airbag
|
|
95910- P0010 Airbag
|
|
95910- R2320 Airbag
|
To correct odometer for new GM models (i.e 2017- Yukon Sierra, 2020+ Buick GL8 etc) with Odomaster, you also need CAN FD adapter.
Keep updating...
For ECU
To read Hyundai Kefico CPSCU1.11.3 TC233 ECM/TCM with DC706 or G3, you may also require to use the CAN FD Adapter on bench mode.
For airbag reset (work with P50):
HYUNDAI 95910-AO100 MOBIS 95512
HYUNDAI 95910-AO200 MOBIS 95512
HYUNDAI 95910-AR000 VEONEER TC233X-16F
HYUNDAI 95910-AR100 VEONEER TC23XX-32F
HYUNDAI 95910-AR200 VEONEER TC23XX-32F
HYUNDAI 95910-AR300 VEONEER TC23XX-32F
HYUNDAI 95910-AT000 MOBIS 95512
HYUNDAI 95910-AT010 MOBIS 95512
HYUNDAI 95910-AT100 MOBIS 95512
HYUNDAI 95910-AT300 MOBIS 95512
HYUNDAI 95910-CG100 MOBIS 95512
HYUNDAI 95910-CG400 MOBIS 95512
HYUNDAI 95910-CG500 MOBIS 95512
HYUNDAI 95910-CH310 CONTINENTAL R7F7015803
HYUNDAI 95910-CH320 CONTINENTAL R7F7015803
HYUNDAI 95910-CJ310 CONTINENTAL R7F7015803
HYUNDAI 95910-CU000 VEONEER TC23XX-16F
HYUNDAI 95910-CU300 VEONEER TC23XX-16F
HYUNDAI 95910-CV000 VEONEER TC23XX-16F
HYUNDAI 95910-CV100 VEONEER TC23XX-16F
HYUNDAI 95910-CV200 VEONEER TC23XX-16F
HYUNDAI 95910-CV300 VEONEER TC23XX-16F
HYUNDAI 95910-CW000 CONTINENTAL R7F7015803
HYUNDAI 95910-CW100 CONTINENTAL R7F7015803
HYUNDAI 95910-CZ000 CONTINENTAL R7F7015803
HYUNDAI 95910-CZ200 CONTINENTAL R7F7015803
HYUNDAI 95910-DS000 VEONEER TC23XX-16F
HYUNDAI 95910-DW320 CONTINENTAL R7F7015803
HYUNDAI 95910-GI000 VEONEER TC233X-16F
HYUNDAI 95910-GI100 VEONEER TC233X-16F
HYUNDAI 95910-GI200 VEONEER TC233X-16F
HYUNDAI 95910-GI300 VEONEER TC233X-16F
HYUNDAI 95910-JI000 VEONEER TC22XX-16F
HYUNDAI 95910-K5000 CONTINENTAL R7F7015803
HYUNDAI 95910-KL000 VEONEER TC233X-16F
HYUNDAI 95910-KL200 VEONEER TC233X-16F
HYUNDAI 95910-L6100 VEONEER TC23XX-32F
HYUNDAI 95910-L8000 MOBIS 95512
HYUNDAI 95910-L8050 MOBIS 95512
HYUNDAI 95910-L8100 MOBIS 95512
HYUNDAI 95910-L8200 MOBIS 95512
HYUNDAI 95910-N0000 MOBIS 95512
HYUNDAI 95910-N1000 MOBIS 95512
HYUNDAI 95910-N6000 MOBIS 95512
HYUNDAI 95910-N8000 MOBIS 95512
HYUNDAI 95910-N8100 MOBIS 95512
HYUNDAI 95910-P2000 VEONEER TC23XX-32F
HYUNDAI 95910-P2020 VEONEER TC23XX-32F
HYUNDAI 95910-P2100 VEONEER TC23XX-32F
HYUNDAI 95910-P2150 VEONEER TC23XX-32F
HYUNDAI 95910-P2200 VEONEER TC23XX-32F
HYUNDAI 95910-P2300 VEONEER TC23XX-32F
HYUNDAI 95910-P4000 VEONEER TC23XX-32F
HYUNDAI 95910-P4020 VEONEER TC23XX-32F
HYUNDAI 95910-P4100 VEONEER TC23XX-32F
HYUNDAI 95910-P4200 VEONEER TC23XX-32F
HYUNDAI 95910-P4250 VEONEER TC23XX-32F
HYUNDAI 95910-P4300 VEONEER TC23XX-32F
HYUNDAI 95910-P4400 VEONEER TC23XX-32F
HYUNDAI 95910-P4450 VEONEER TC23XX-32F
HYUNDAI 95910-R0000 VEONEER TC23XX-32F
HYUNDAI 95910-R0010 VEONEER TC23XX-32F
HYUNDAI 95910-R0100 VEONEER TC23XX-32F
HYUNDAI 95910-R0500 VEONEER TC23XX-32F
HYUNDAI 95910-R0600 VEONEER TC23XX-32F
HYUNDAI 95910-R5000 VEONEER TC23XX-32F
HYUNDAI 95910-T1000 VEONEER TC23XX-32F
HYUNDAI 95910-T1010 VEONEER TC23XX-32F
HYUNDAI 95910-T1020 VEONEER TC23XX-32F
HYUNDAI 95910-T1100 VEONEER TC23XX-32F
HYUNDAI 95910-T1200 VEONEER TC23XX-32F
HYUNDAI 95910-T4000 MOBIS 95512
HYUNDAI 95910-T4100 MOBIS 95512
HYUNDAI 95910-T6100 VEONEER TC23XX-32F
HYUNDAI 95910-T6120 VEONEER TC23XX-32F
HYUNDAI 95910-T6200 VEONEER TC23XX-32F
HYUNDAI 95910-T6400 VEONEER TC23XX-32F
KIA 95910-N7010 CONTINENTAL R7F7015803
KIA 95910-N7030 CONTINENTAL R7F7015803
KIA 95910-N7050 CONTINENTAL R7F7015803
KIA 95910-N7070 CONTINENTAL R7F7015803
KIA 95910-N9000 CONTINENTAL R7F7015803
KIA 95910-N9010 CONTINENTAL R7F7015803
KIA 95910-N9020 CONTINENTAL R7F7015803
KIA 95910-N9030 CONTINENTAL R7F7015803
KIA 95910-N9050 CONTINENTAL R7F7015803
KIA 95910-N9060 CONTINENTAL R7F7015803
KIA 95910-N9080 CONTINENTAL R7F7015803
KIA 95910-N9110 CONTINENTAL R7F7015803
KIA 95910-P0000 CONTINENTAL R7F7015803
KIA 95910-P0010 CONTINENTAL R7F7015803
KIA 95910-P0100 CONTINENTAL R7F7015803
KIA 95910-P0110 CONTINENTAL R7F7015803
KIA 95910-P1310 CONTINENTAL R7F7015803
KIA 95910-P1320 CONTINENTAL R7F7015803
KIA 95910-P1330 CONTINENTAL R7F7015803
KIA 95910-P1340 CONTINENTAL R7F7015803
KIA 95910-P1350 CONTINENTAL R7F7015803
KIA 95910-R2110 CONTINENTAL R7F7015803
KIA 95910-R2120 CONTINENTAL R7F7015803
KIA 95910-R2310 CONTINENTAL R7F7015803
KIA 95910-R2320 CONTINENTAL R7F7015803
TOYOTA 89170-02W60 DENSO R7F7016443
TOYOTA 89170-02Y10 DENSO CYT2B93BAC
TOYOTA 89170-08110 DENSO R7F7016443
TOYOTA 89170-08210 DENSO R7F7016443
TOYOTA 89170-08230 DENSO R7F7016443
TOYOTA 89170-0A100 DENSO R7F7016443
TOYOTA 89170-0A140 DENSO R7F7016443
TOYOTA 89170-0A200 DENSO R7F7016443
TOYOTA 89170-0A220 DENSO R7F7016443
TOYOTA 89170-0C660 DENSO R7F7016443
TOYOTA 89170-0C670 DENSO R7F7016443
TOYOTA 89170-0C690 DENSO R7F7016443
TOYOTA 89170-0DE20 DENSO R7F7016843
TOYOTA 89170-0DE30 DENSO R7F7016843
TOYOTA 89170-0DF30 DENSO R7F7016843
TOYOTA 89170-0DF40 DENSO R7F7016843
TOYOTA 89170-0DF50 DENSO R7F7016843
TOYOTA 89170-0DG60 DENSO R7F7016843
TOYOTA 89170-0DG70 DENSO R7F7016843
TOYOTA 89170-0E330 DENSO R7F7016443
TOYOTA 89170-0E340 DENSO R7F7016443
TOYOTA 89170-0E350 DENSO R7F7016443
TOYOTA 89170-0H220 DENSO R7F7016843
TOYOTA 89170-0H230 DENSO R7F7016843
TOYOTA 89170-0R280 DENSO R7F7016843
TOYOTA 89170-12G10 DENSO R7F7016443
TOYOTA 89170-42690 DENSO R7F7016443
TOYOTA 89170-42700 DENSO R7F7016443
TOYOTA 89170-42720 DENSO R7F7016443
TOYOTA 89170-42730 DENSO R7F7016443
TOYOTA 89170-42E50 DENSO R7F7016443
TOYOTA 89170-42F10 DENSO R7F7016443
TOYOTA 89170-48E10 DENSO R7F7016443
TOYOTA 89170-48E30 DENSO R7F7016443
TOYOTA 89170-48E50 DENSO R7F7016443
TOYOTA 89170-48E70 DENSO R7F7016443
TOYOTA 89170-48J20 DENSO R7F7016443
TOYOTA 89170-52P60 DENSO R7F7016843
TOYOTA 89170-52P70 DENSO R7F7016843
TOYOTA 89170-52P80 DENSO R7F7016843
TOYOTA 89170-52Q10 DENSO R7F7016843
TOYOTA 89170-52Q20 DENSO R7F7016843
TOYOTA 89170-52Q30 DENSO R7F7016843
TOYOTA 89170-52Q50 DENSO R7F7016843
TOYOTA 89170-52Q60 DENSO R7F7016843
TOYOTA 89170-52Q70 DENSO R7F7016843
TOYOTA 89170-60D70 DENSO R7F7016443
TOYOTA 89170-60D80 DENSO R7F7016443
TOYOTA 89170-60F10 DENSO R7F7016443
TOYOTA 89170-60F80 DENSO R7F7016443
TOYOTA 89170-60F90 DENSO R7F7016443
TOYOTA 89170-60G00 DENSO R7F7016443
TOYOTA 89170-60G70 DENSO R7F7016443
TOYOTA 89170-62050 DENSO R7F7016443
TOYOTA 89170-78090 DENSO R7F7016443
TOYOTA 89170-82010 DENSO R7F7016443
TOYOTA 89170-F6010 DENSO R7F7016443
TOYOTA 89170-K0010 DENSO R7F7016843
TOYOTA 89170-K0030 DENSO R7F7016843
TOYOTA 89170-K0060 DENSO R7F7016843
TOYOTA 89170-K0070 DENSO R7F7016843
TOYOTA 89170-K0080 DENSO R7F7016843
Packing List

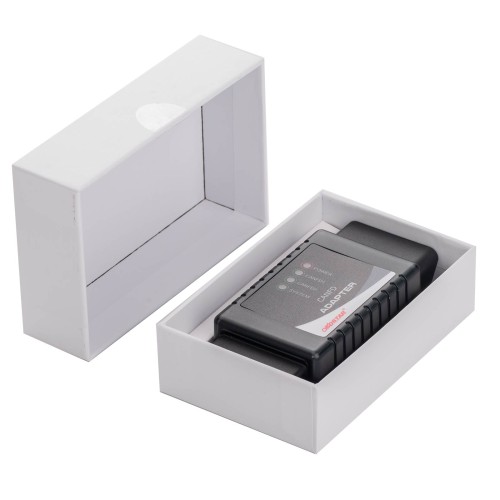

1pc X OBDSTAR CAN FD Adapter
