Features:

1. Android 11 operation system, one-click OTA upgrade;

2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;

4. Menu arbitrary selection is more convenient and quicker;

5. Record and play back real-time flow, quickly and accurately locate sensor and component faults;

6. Wi-Fi connection to the internet, one-click software upgrade;

7. One-click remote function, OBDSTAR technical staff remote assistance;

8. Support the fault diagnosis of most of the world's luxury locomotives and tens of thousands of models;

9. Support screen recording and wireless screen casting function.

10. One year update for free. 200 USD for another year of update. (There is a promotion, if you buy the one year update before it expires, 160 USD for one year update)

11. English only, can't be changed to other languages.

Advanced Functions

1. The OBDSTAR mobile APP integrates functions such as diag socket location（DLC), flash code query, technical bulletin, manual service lamp  reset, parameters, etc., working with MOTOMASTER to make motorcycle diagnosis more accurately and efficiently;

2. The first fault guidance, help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;

3. Exclusive interactive wiring diagram and electrical description query function, so that you can have a worry-free diagnosis;

4. Diversified data flow display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;

5. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustm

6. Upgraded version of MS80, with built-in CAN FD, DoIP, RFID, do not need to buy CAN FD adapter.

MOTOMASTER FULL=MOTO Diag + Marine Diag + E-MOTO Diag + IMMO + Cluster Recalibration + ECU Flasher + Make Key

Supported Functions and Brands:

Motorcycle/Snowmobile/ATV/UTV Diagnostic Function Support Series

ASIA:

AEON, BAJAJ, BENELLI(DSK), DAELIMMOTOR, HARTFORD, HERO, HONDA, HYOSUNG, KAWASAKI, KYMCO, PGO, ROYAL ENFIELD, SUZUKI, SYM, TGB, TVS, YAMAHA

EUROPE:

ADIVA, AJP, APRILIA, BENELLI, BETAMOTOR, BMW, BRIXTON MOTORCYCLES, BROUGH SUPERIOR, DERBI, DUCATI, FANTIC MOTOR, FBMONDIAL, GASGAS, GG TECHNIK, GILERA, GOES, HM, HUSABERG, HUSQVARNA, ITALJET, KEEWAY, KRAMER MOTORCYCLES, KREIDLER, KSR MOTO, KTM, KVN MOTORS, LAMBRETTA, LEXMOTO, MACBOR, MALAGUTI, MALCOR, MASH, MBK, MBP, MGK HM, MH, MINSK, MITT, MOTO GUZZI, MOTO MORINI, MOTRON. MUTT MOTORCYCLES, MV AGUSTA, NOX, ORCAL, OVERBIKES, PEUGEOT, PIAGGIO, QOODER, QUADIX, QUADRO, RBS, RIEJU, ROYAL ALLOY, SCORPA, SHERCO, STELS, SUMCO, SWM, TRIUMPH, URAL, VENT,  VERVE MOTO, VESPA, WOTTAN

AMERICAS:

ACELLERA, AKT, ARCTICCAT, BRP, BUELL, COLEMAN, CSC MOTORCYCLES, DAFRA, HARLEY DAVIDSON, INDIAN, KELLER, POLARIS, RVM, UM, VICTORY, VICTORY_colombia

CHINA:

ARIIC, BAODIAO, BENDA, CFMOTO, CHINA ABS, CHINA ENGINE, CQZONGSHEN, CYCLONE, DAYANG, DAYUN, DONGFANG, FYM,  GAOKIN, GEELY MOTOR, GENERIC, GEON, GUOWEI, HAOJIANG, HAOJUE, HISUN, JINCHENG, JNQQSUZUKI, KEEWAY, KL, KOVE, LIFAN, LINHAI, LONGJIA, LONXIN, QJBENELLI, QJMOTOR, REGAL RAPTOR, RIYA, SENKE, SHINERAY, SINNIS, TARO, TIANMA, TRMOTOR, VOGE, WYHONDA, XDZHONDA, ZONTES

E-Moto Diagnostic Function Support Series

BROSE, NIU, YADEA, ZEEHO

Marine(Jet-Ski) Diagnostic Function Support Series

BRP(SEA-DOO), HONDA, KAWASAKI, YAMAHA

Motorcycle Key Programming (IMMO) Support Series

EUROPE:

BMW, DUCATI, ITALJET, PEUGEOT, PIAGGIO, TRIUMPH

AMERICAS:

BRP, HARLEY DAVIDSON, INDIAN, POLARIS

ASIA:

HONDA, KAWASAKI, SUZUKI, YAMAHA

CHINA:

DAYANG, HAOJUE

The following brands need to buy the P001 kit for IMMO by EEPROM:
APRILIA, BMW, DUCATI, HONDA, KAWSAKI, PIAGGIO, SUZUKI, YAMAHA

The following brands need to buy the MP001 for IMMO by BENCH:
HONDA, SUZUKI, YAMAHA

Programmer (Cluster Recalibration by Dump) Support Series

EUROPE:

APRILIA, BENELLI, BMW, CAGIVA, DUCATI, GENERIC, KTM, MV AGUSTA, PEUGEOT, PIAGGIO, TRIUMPH

AMERICAS:

BUELL, HARLEY-DAVIDSON

ASIA:

HONDA, KAWASAKI, SUZUKI, YAMAHA

CHINA:

HAOJUE, KYMCO

Odo Meter (Cluster Recalibration by OBD/Bench) Support Series

APRILIA, BRP,  DUCATI，KTM

ECU Flasher Support Series

APRILIA, BRP, CFMOTO, DERBI, GILERA, ITALJET, KTM, MOTO GUZZI, PEUGEOT, PIAGGIO, QJBENELLI, ROYAL ENFIELD, VESPA

Make Key Support Series

APRILIA, BMW, DUCATI, HONDA, KAWASAKI, PIAGGIO, SUZUKI, YAMAHA

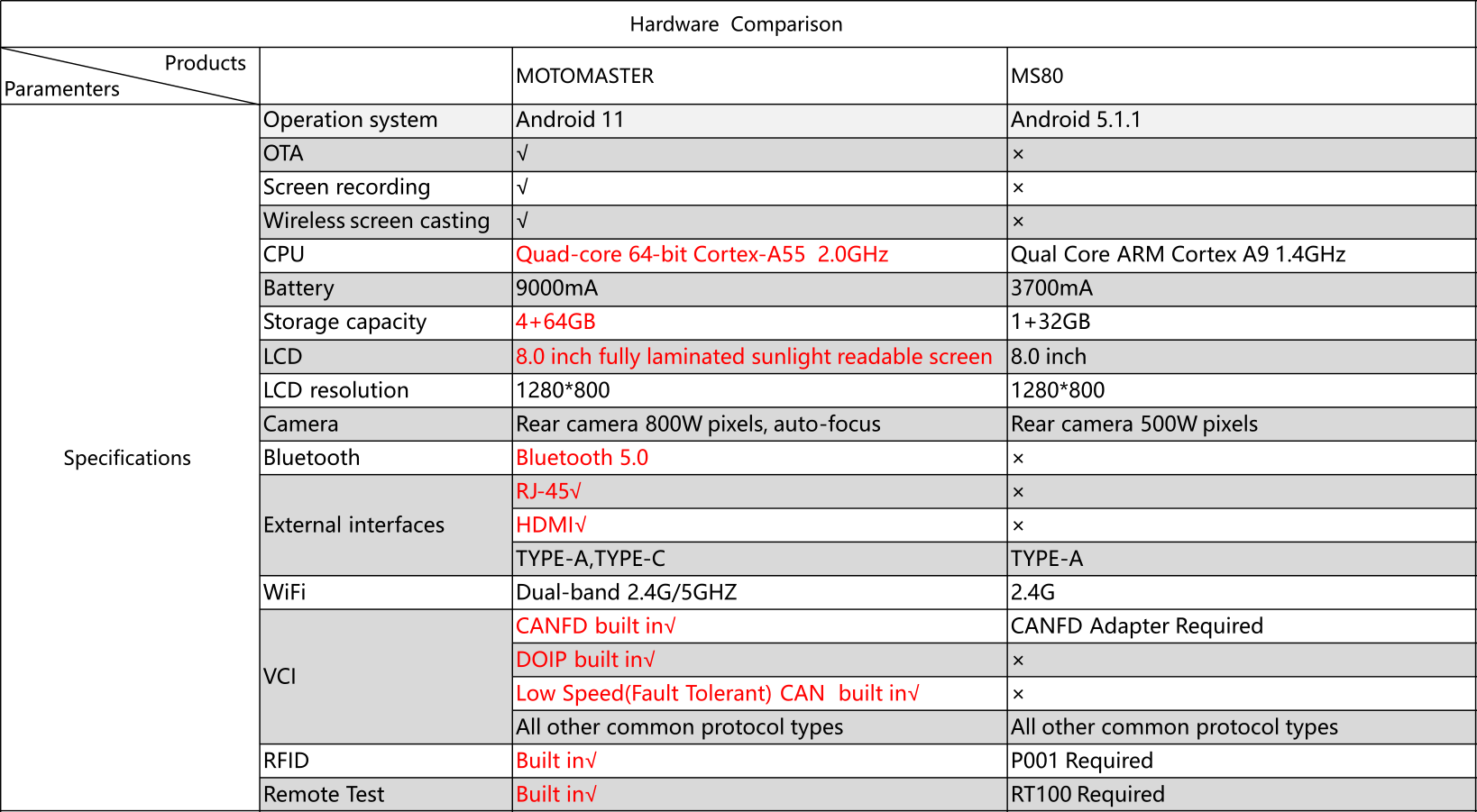

Comparison: MOTOMASTER VS MS80

Package includes:

1pc x tablet
1pc x M001A main cable
1pc x M002 clipper cable
1pc x M002A GND cable
1pc x M003A multi-functional jumper
1pc x M004 APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA-3 cable
1pc x M005 KAWASAKI-4+6 cable
1pc x M006 KAWASAKI-4+4 cable
1pc x M012A SUZUKI-6 cable
1pc x M015A HONDA-4 cable
1pc x M018A YAMAHA-3+4+3 cable
1pc x M019 KTM-6 cable
1pc x M021A AEON/BENELLI/BENELLI DSK/QJ BENELLI-6 cable
1pc x M026 SYM-3 cable
1pc x M027 KYMCO/KAWASAKI-3 cable
1pc x M034 HARLEY-DAVIDSON-4+6 cable
1pc x M037 DUCATI-4 cable
1pc x M040 BMW-10 cable
1pc x M041 OBD-6 cable
1pc x M042A INDIAN/VICTORY-8 cable
1pc x M043 BRP-6 cable
1pc x M061 YAMAHA-3 cable
1pc x 12V2A charger
