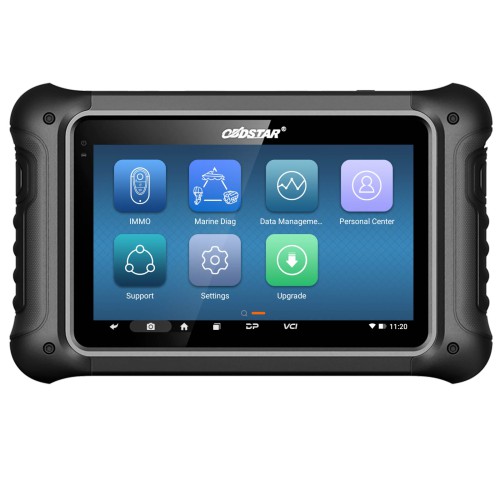

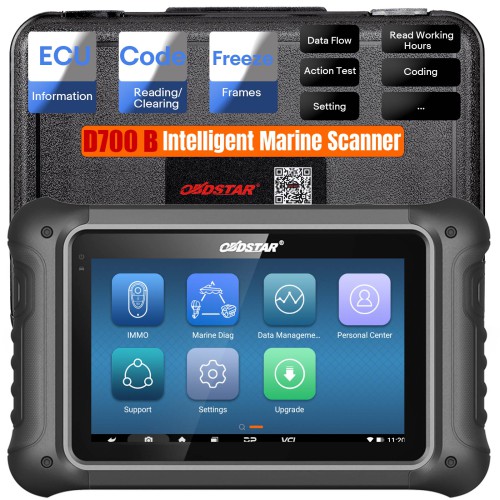

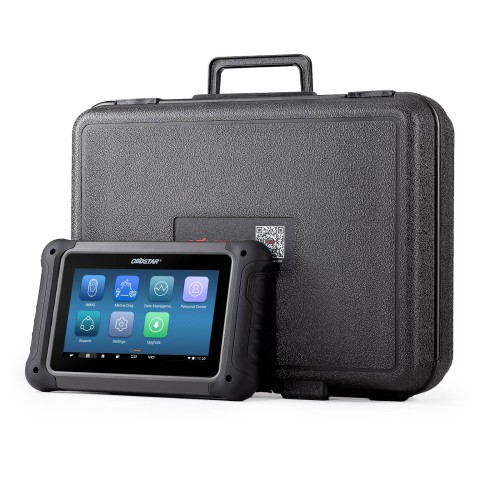

OBDSTAR D700 B（ Mainly for Outboard）Intelligent Marine Scanner
Product Features:
Setting
Coding
Data Flow
Action Test
ECU Information
Code Reading
Code Clearing
Freeze Frames
Read Working Hours
One year update for free. 200 USD for update per year.
Supported Brands:
D700 B (Mainly for Outboard), supported brands as below: EVINRUDE, HIDEA, HONDA, JOHNSON, MARINER, MERCURY, PARSUN, SELVA, SEVEN, SUZUKI, TOHATSU, YAMAHA..
.
Product Functions:
1. Adopting the new Android system, smooth operation;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including ECU information, code reading, code clearing, data flow, freeze frames, action test, setting, coding, read working hours etc;
4. Record and play back real-time flow, quickly and accurately locate sensor and component faults;
5. Wi-Fi connection to the internet, one-click software upgrade;
6. One-click remote function, OBDSTAR technical staff remote assistance.
Advanced Function
1. The OBDSTAR mobile APP integrates functions such as diag socket location(DLC), flash code query, technical bulletin, manual service lamp reset, interactive wiring diagram, parameters, etc., which helps you diagnose accurately and efficiently together with D700 (free access for D700/D800 users only);
2. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to analyze faults easily;
3. Supports Auto Scan, Number of stations, Lever Adapt, Setting of the foot throttle, Active Trim Configuration, Auxiliary Joystick Configuration, Instrumentation configuration, Compass Configuration, Drive Alignment, Helm Setup, TDS Reset, Set Tilt Limit, SMUX Configuration, Trackpad Configuration, Key programming, Maintenance Notification Setting, Idle adjustment and other functions.

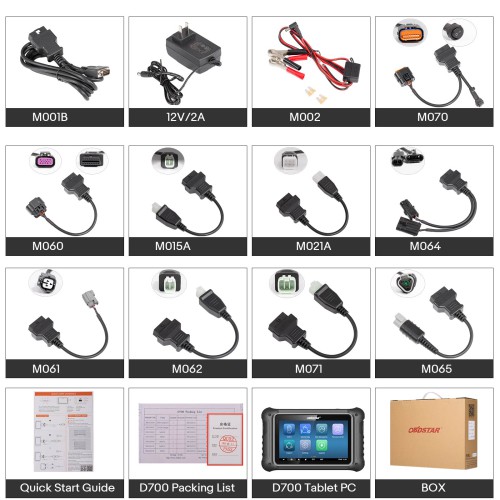

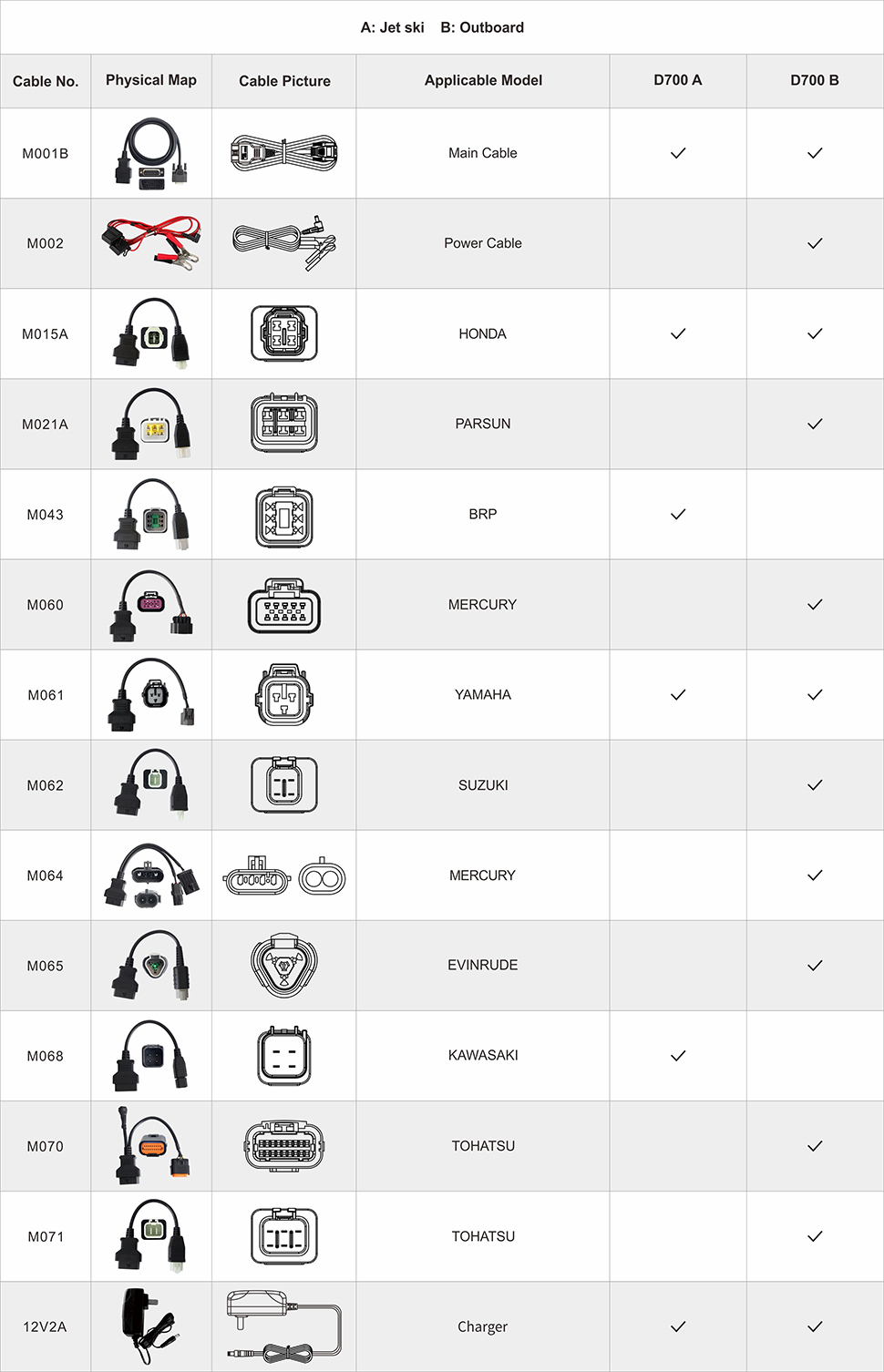

Package Includes:
1pc x OBDSTAR D700 B Tablet
1pc x M001B main cable
1pc x M002 power cable
1pc x M015A Honda
1pc x M021A Parsun
1pc x M060 Mercury
1pc x M061 Yamaha
1pc x M062 Suzuki
1pc x M064 Mercury
1pc x M065 Evinrude
1pc x M070 Tohatsu
1pc x M071 Tohatsu
1pc x 12V 2A charger
