OBDOK Technology Co., Ltd

Home / Products / Brand:OBDSTAR / Original OBDSTAR Tools

2 Years UpdateOBDSTAR2026 New ArriveOBDSTAR X300 Classic G3/ Key Master G3 A1+A2 Key Programmer for Car/ HD/ E-Car/ Motorcycle/ Jet Ski Free Key SIM & Motorcycle Cables

Brand：OBDSTAR Item No. OBDSTAR 007 In Stock. History 0 sold.

0 rating

| Have a question?

Buy Now: $1299.00

OBDSTAR 007: OBDSTAR X300 Classic G3

$2999.00

$1299.00

BLACK FRIDAY FLASH SALE
SAVE UP TO 60% OFF

We are interested in discussing potential drop-ship services or cooperation opportunities with you.
Email: Info@OBDOK.com
WhatsAp: +86 17323042758

Shipping:

Free Shipping Online Activation No Real Shipping 24Business Hours Activation ?

Quantity:

Weight:

6.5KG

Package:

52cm*40cm*17cm

Returns:

Return for refund within 30 days,buyer pays return shipping. Read details »

Product Description
FAQs 0
Reviews 0
Related Products

Product Description

With built-in CAN FD and DoIP, X300 Classic G3 supports Car, E-Car, HD, Motorcycle, Marine IMMO
With FREE motorcycle IMMO accessories kit + key SIM smart key emulator
Paid software activation service for Cluster Calibration, ECU Flasher, Airbag Reset, Test Platform and the other functions are available.
2 years free subscription

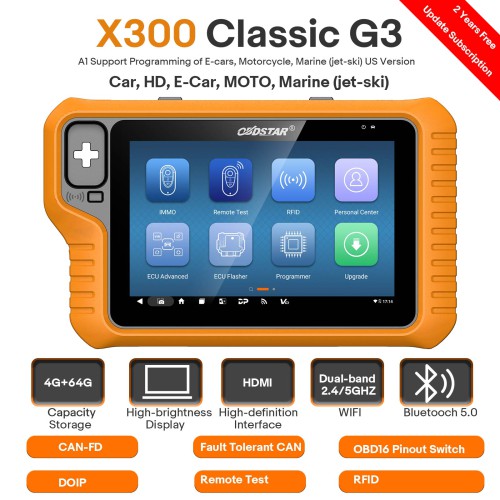

OBDSTAR X300 Classic G3 is the new generation intelligent scanner of OBDSTAR, which fully inherits the many advantages of OBDSTAR in automobile/commercial vehicle technology, such as wide coverage of car models and various functions, and comprehensively increases the programming functions of E-car, motorcycle, Jet Ski, etc. A good helper for an automotive locksmith master.

X300 Classic G3 Features:

1. Built in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID;
2. RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.
3. Support WIFI/Bluetooth Dual-band 2.4/5GHZ
4. Language: ONLY English, can't change to other language.
5. Paid software activation service for Cluster Calibration, ECU Flasher, Airbag Reset, Test Platform and the other functions are available.
6. Two Years free update. 249 USD for another year of update. (There is a promotion, if you buy the one year update before it expires, 199.2 USD for one year update)
7. Ship from the US and EU warehouses, fast delivery and no tax to USA and EU countries.

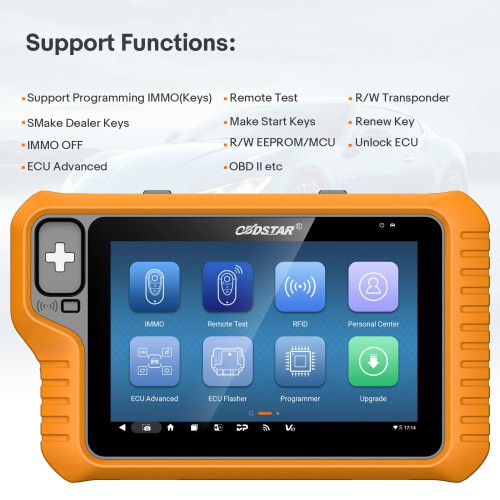

X300 Classic G3 Functions:

Programming IMMO(Keys),
Remote Test,

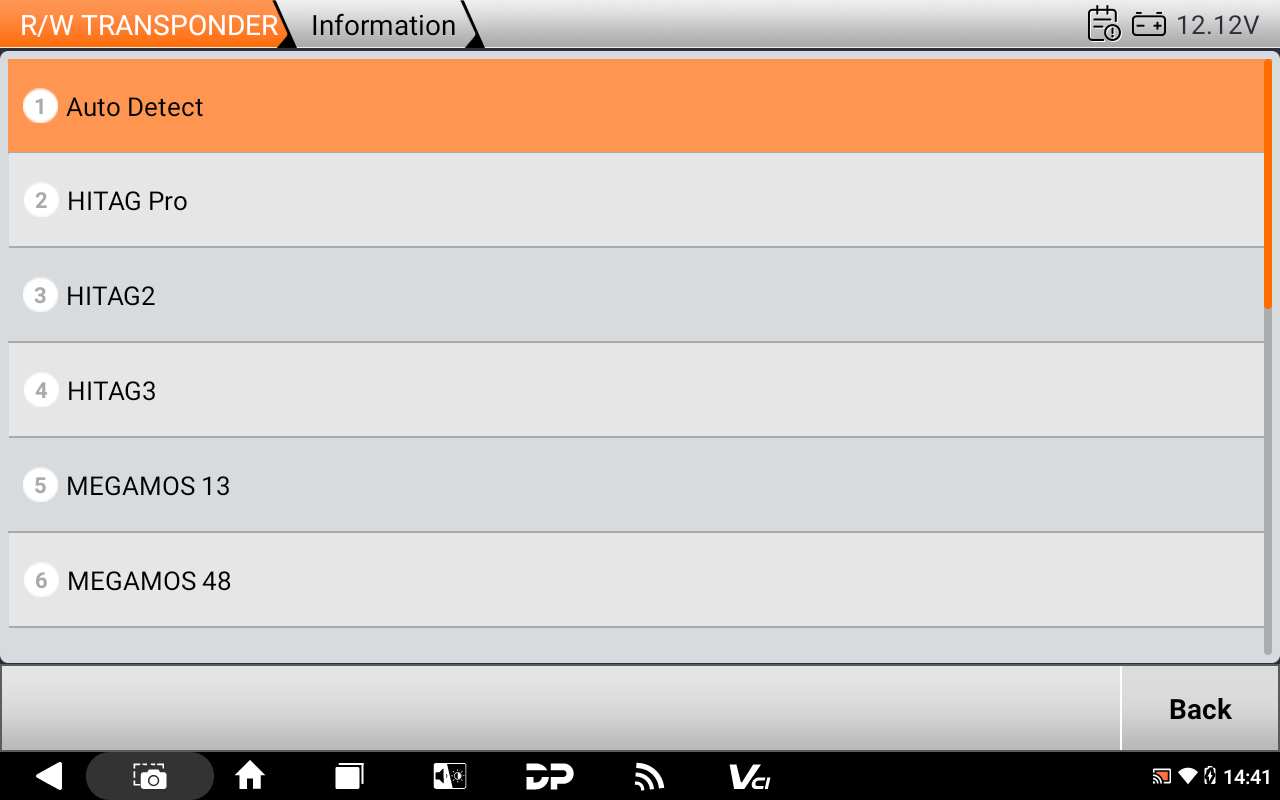

R/W Transponder,
Make Dealer Keys,
Make Start Keys,
Renew Key,
IMMO OFF,
R/W EEPROM/MCU,
Unlock ECU,
ECU Advanced,
OBD II etc.

Advanced Functions:

1. Support MOTO key programming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITALJET and others;
2. Support Marine key programming function for BRP, KAWASAKI, YAMAHA and others;
3. Support E-Car key programming function for LI, NETA, LEAP MOTOR, SERES, AITO and others;
4. Support unlock ECU function for ALFAROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;
5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;
6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;
7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6\SM6 models.
8. Can buy licenses for Cluster Calibration, ECU Flasher, Airbag Reset, Test Platform.

Supported vehicles:

Car, HD, E-Car, MOTO, Jet Ski

Attention:
"-" in the car list doesn't mean ``up to date. For example, Crown Victoria (2005 -) means the device can work with a 2005 for sure, you can try with 2006 model, but if it fails, there is no solution.

Comparison between X300 Classic G3 & X300 DP LUS

Products Details		X300 DP Plus C	X300 Classic G3
Hardware	Operation system	Android 5.1.1	Android 11
	OTA	x	√
	Screen recording	x	√
	Wireless screen casting	x	√
	CPU	qual core ARM cortex A9 1.4GHz	Quad-core 64-bit Cortex-A55 2.0GHz
	Battery	3700mAh	9000mAh
	Storage capacity	1+32GB	4+64GB
	LCD	8.0 inch	8.0 inch fully laminated sunlight readable screen
	Camera	Rear camera 500W pixels	Rear camera 800W pixels, auto-focus
	Bluetooth	Bluetooth 4.2	Bluetooth 5.0(Compatible with BT 4.2)
	External interfaces	x	RJ-45√
		x	HDMI√
		TYPE-A	TYPE-A,TYPE-C
	WiFi	2.4G	Dual-band 2.4G/5GHZ
	VCI	STM32F105	STM32H723
		CANFD Adapter Required	CANFD built in√
		x	DOIP built in√
		x	Low Speed(Fault Tolerant) CAN built in√
		x	RS232、RS485 built in√
		All other common protocol types	All other common protocol types
	RFID	P001 Required	Built in√
	Remote Test	RT100 Required	Built in√
	Renault Converter	Renault Converter Required	Built in√
	Weight	About 1kg	1.5kg (main unit)
	Dimension	254mm174mm35mm	270.5mm165mm39mm
Functions	Diagnosis	√	x
	OBDⅡ	√	√
	Car IMMO	√	√
	MOTO IMMO	√	√
	HD IMMO	√	√
	Marine IMMO	x	√
	E-Car IMMO	x	√
	RFID	x	√
	Make key	x	√
	Unlock Smart key	x	√
	Renew key	√	√
	Read/Write EEPROM MCU	√	√
	ECU advanced（Includes ECU unlock）	x	√
	Oil/Service reset	√	√
	Other service function	√	x
	Remote test	x	√
	ECU flasher IMMO（IMMO OFF、ISN、IMMODATA）	x	√
	ECU flasher（Clone）	√ Limited supported models, different with DC706 and G3	Paid activation
	Car/Motorcycle cluster recalibration	√	Paid activation
	Airbag reset	√	Paid activation
	Test Platform	x	Paid activation

Function Display

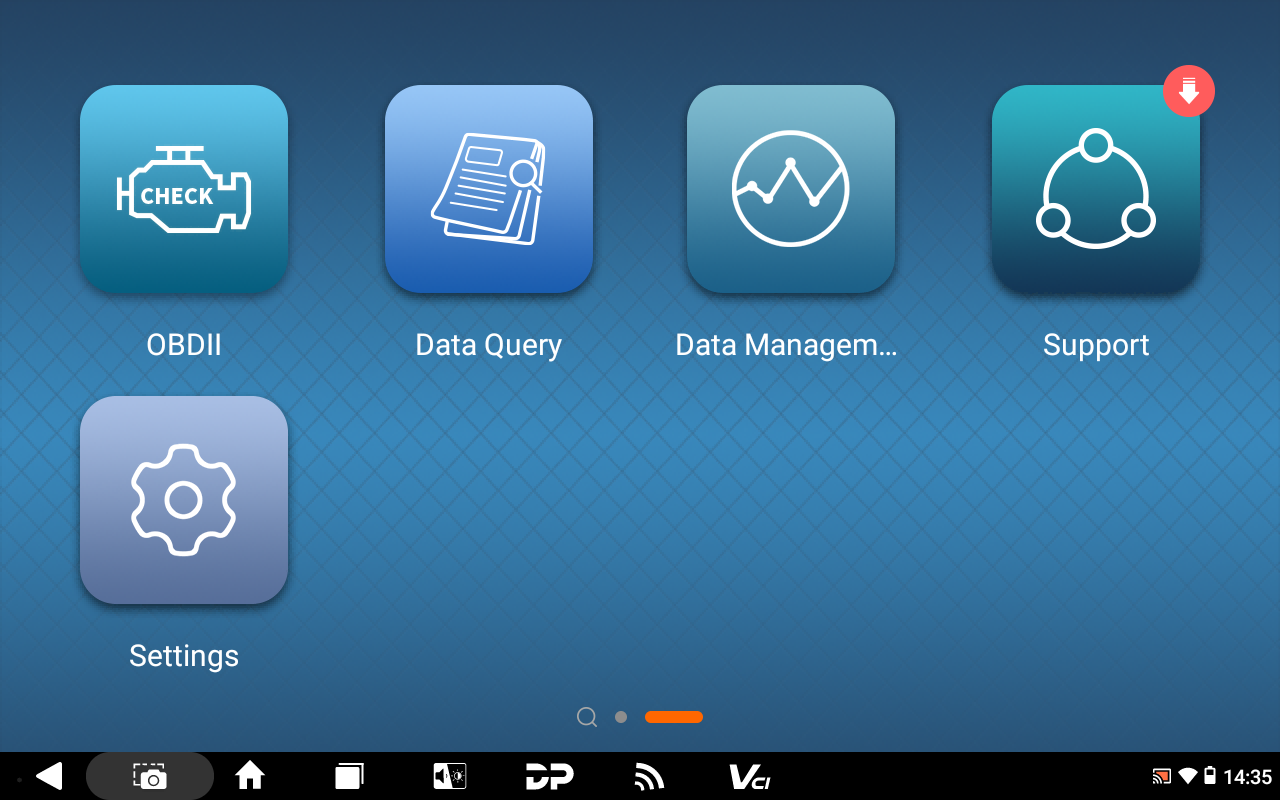

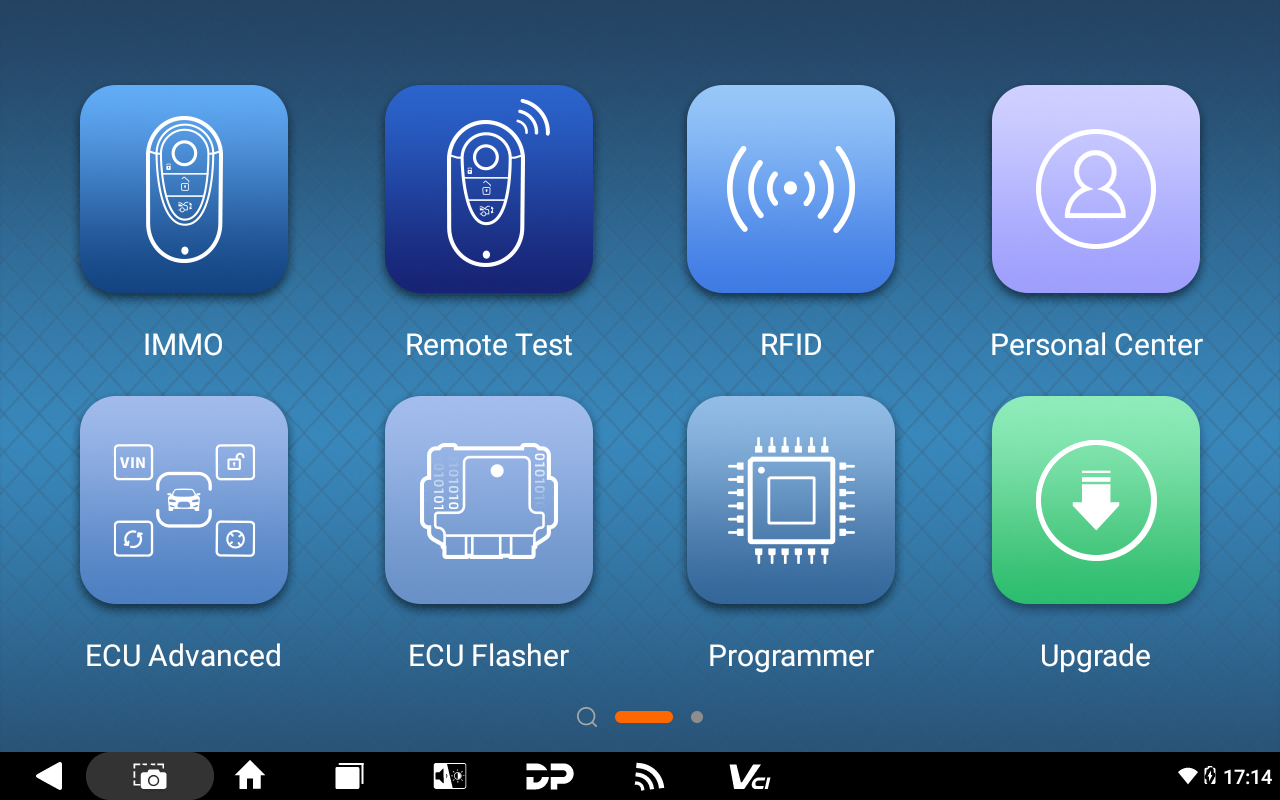

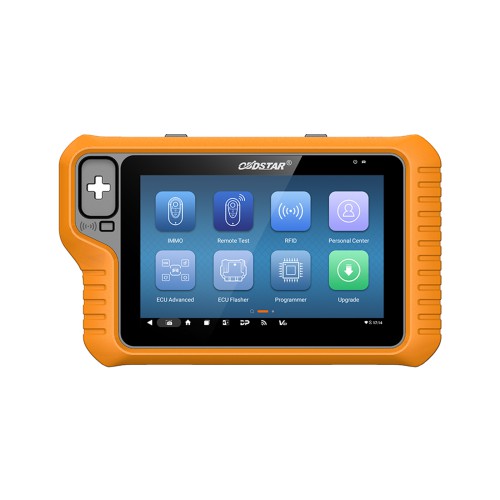

1) Main Page

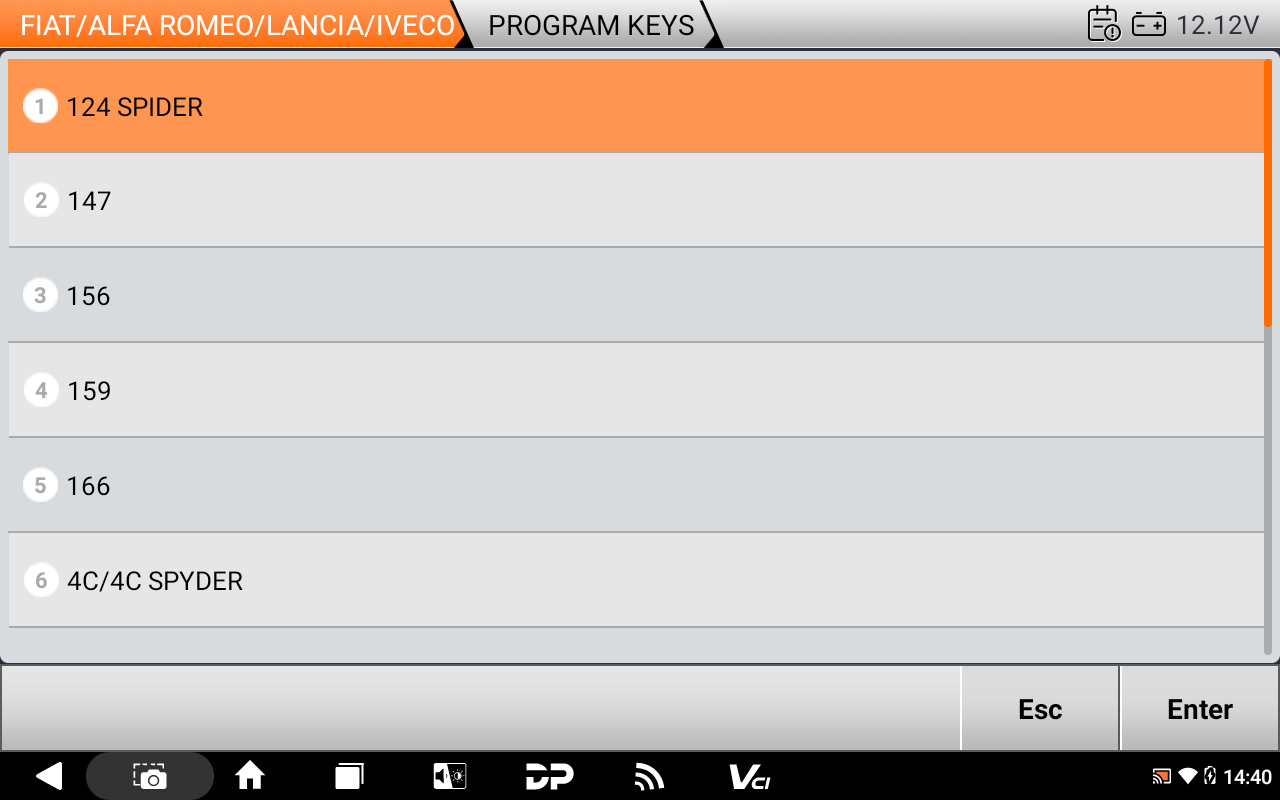

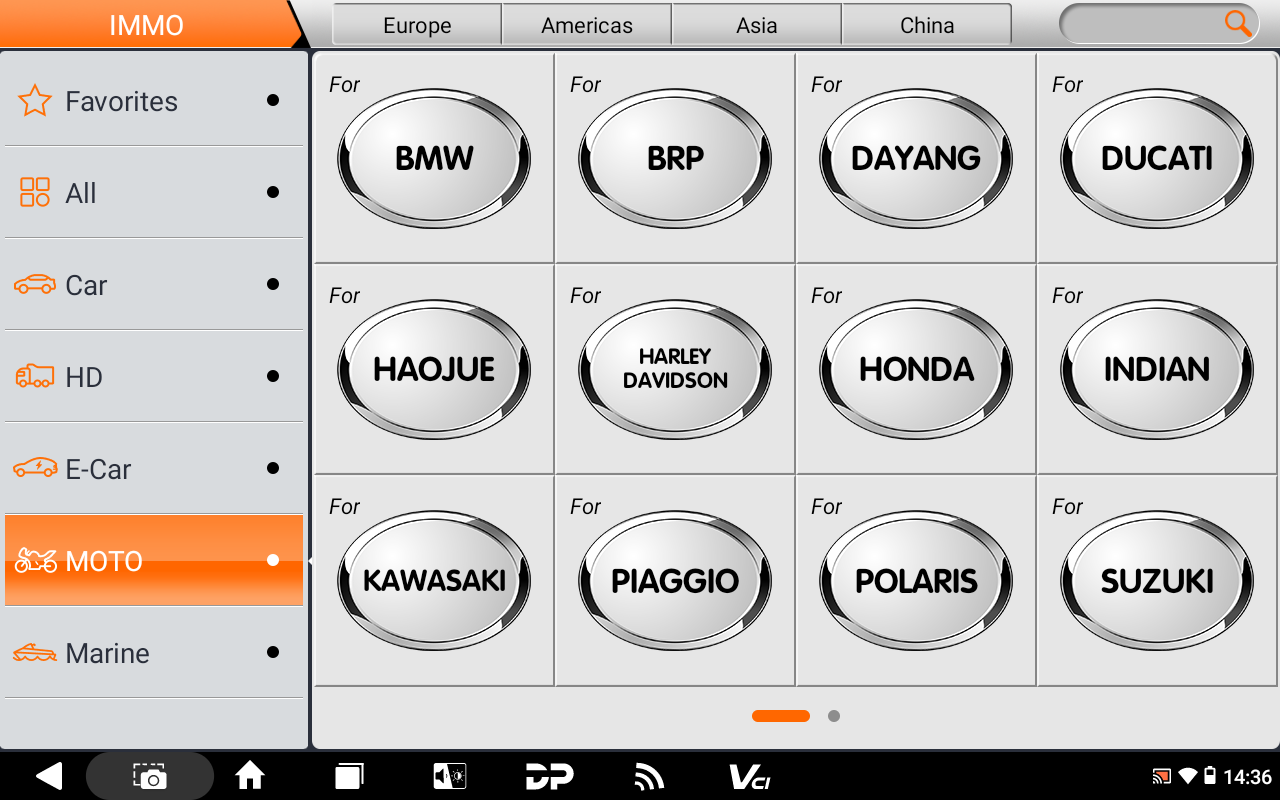

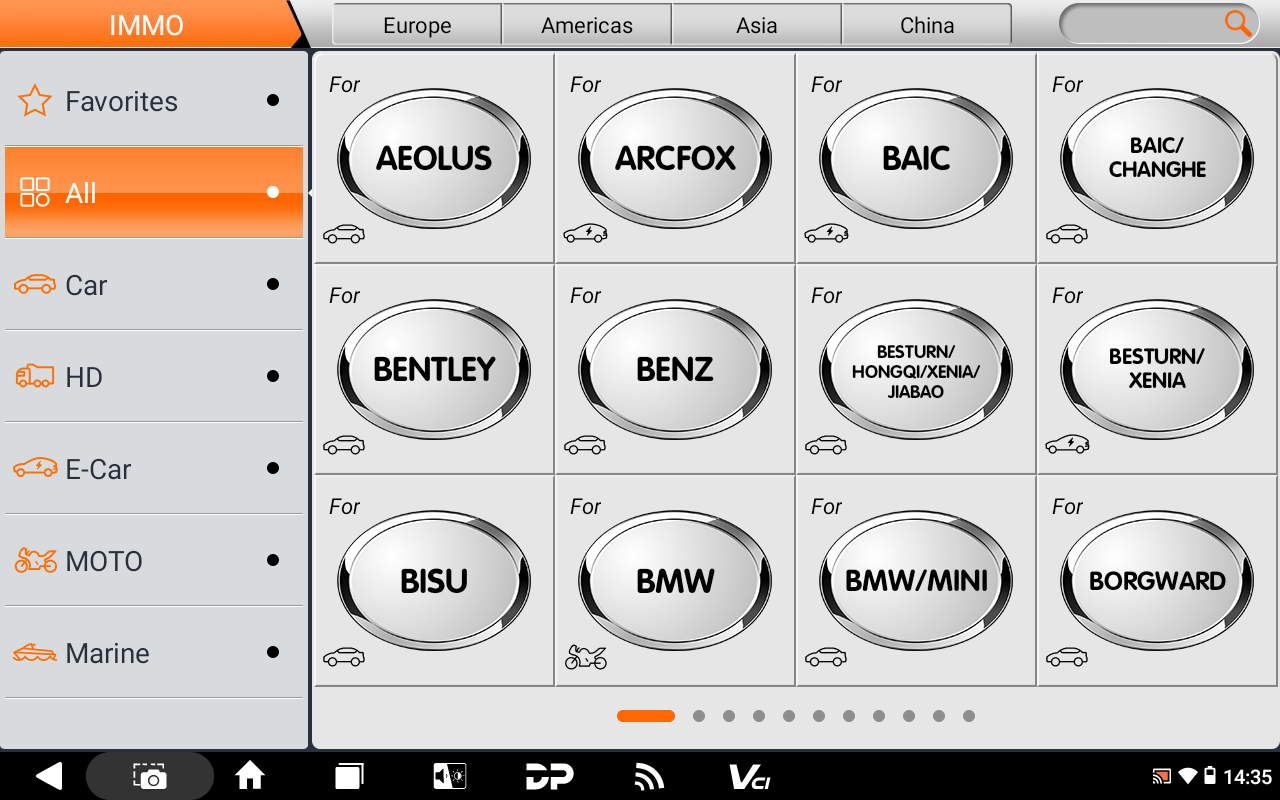

2) IMMO

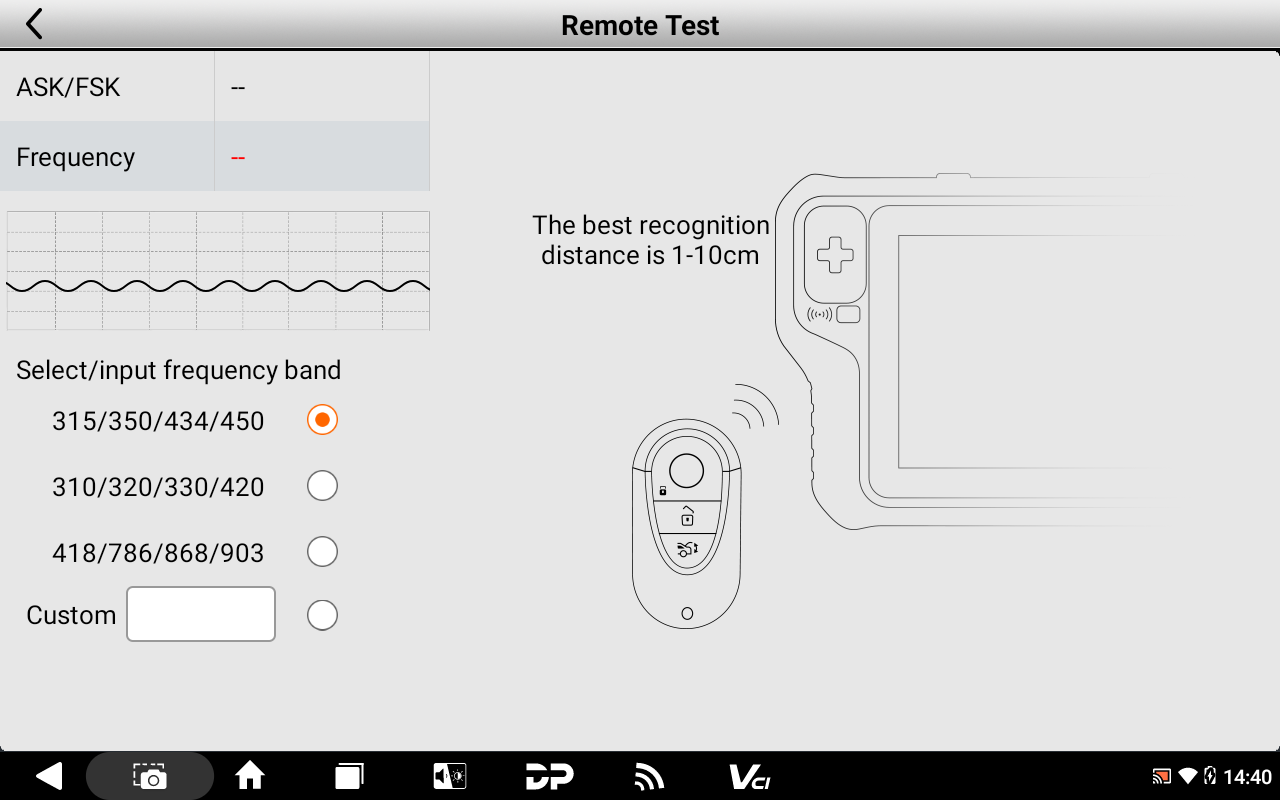

3) Remote Test

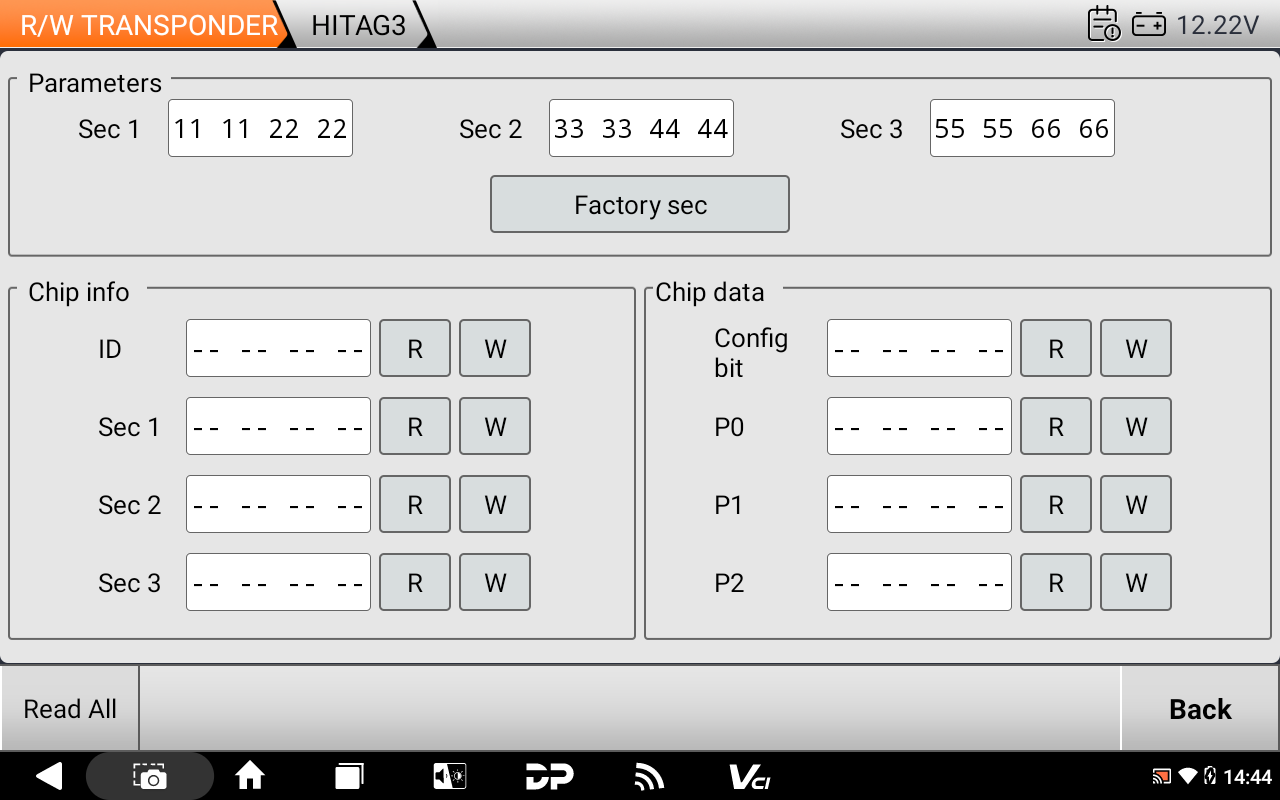

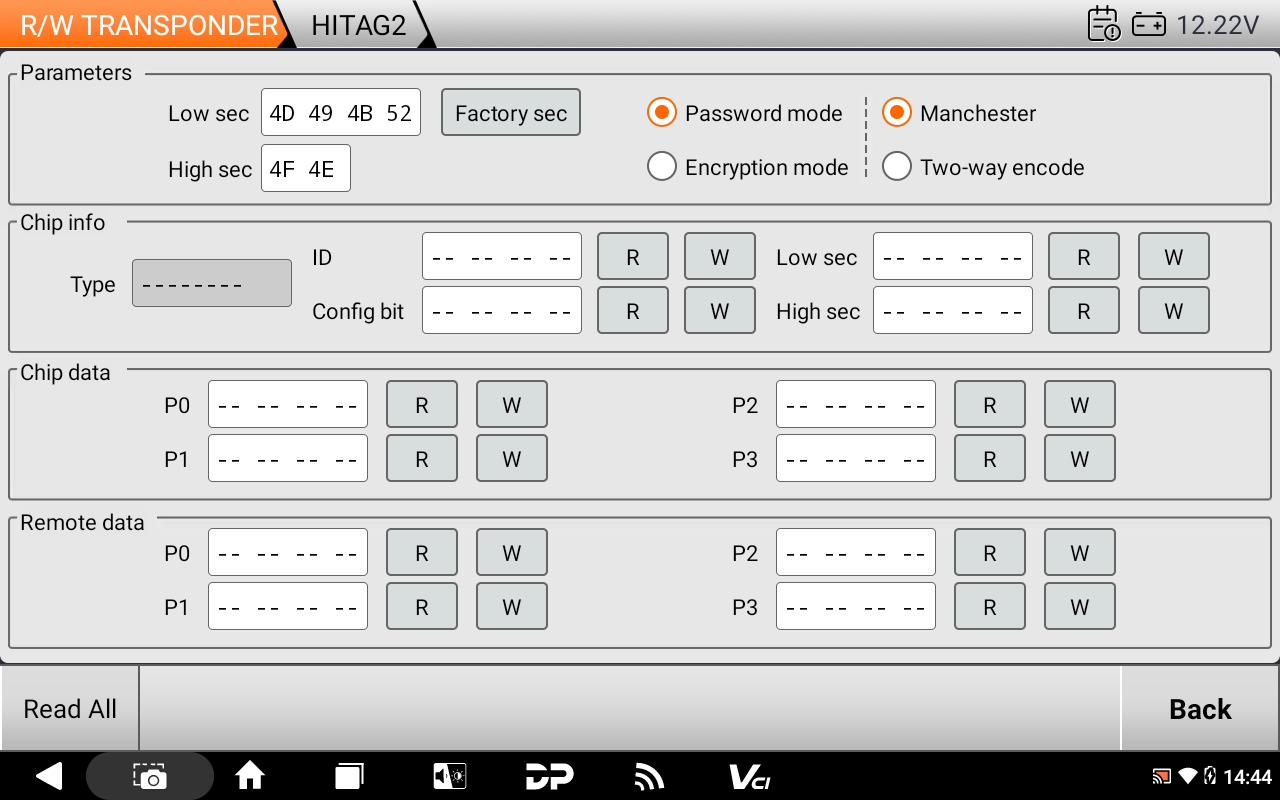

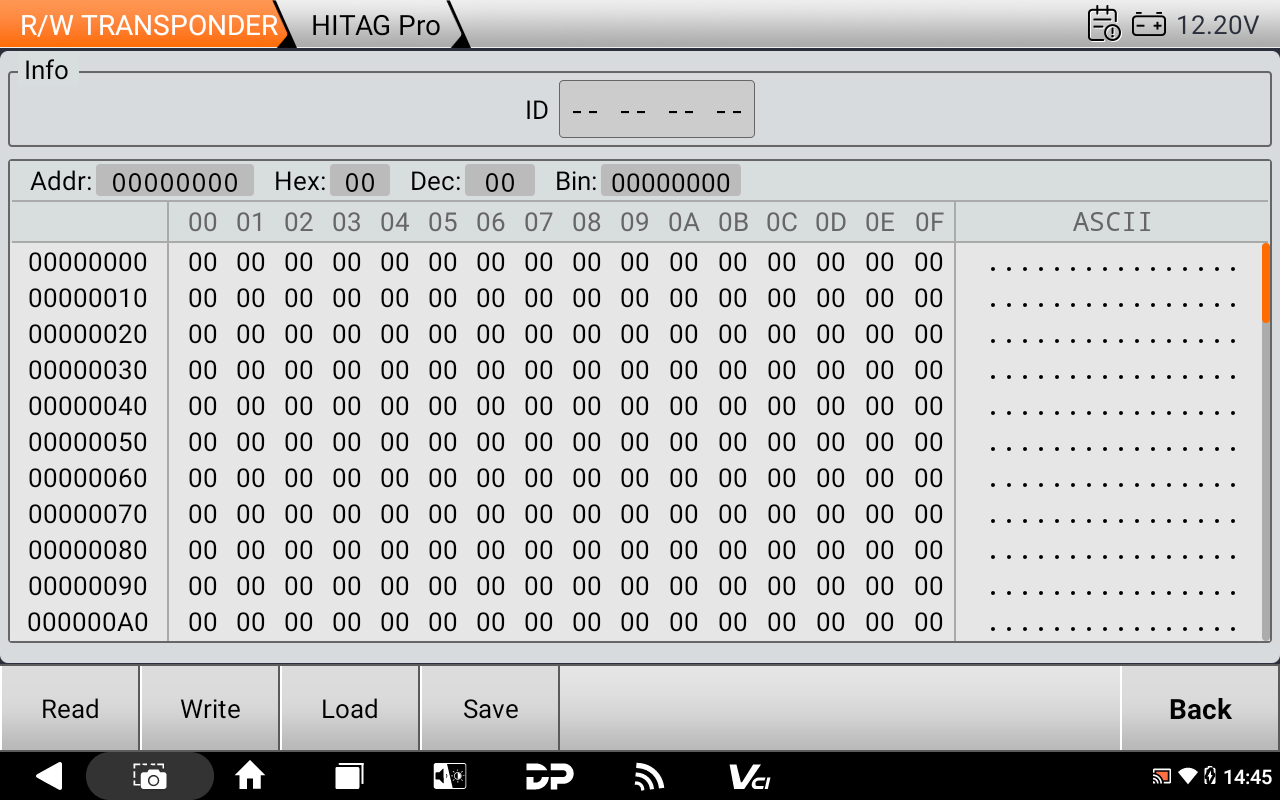

4) RFID

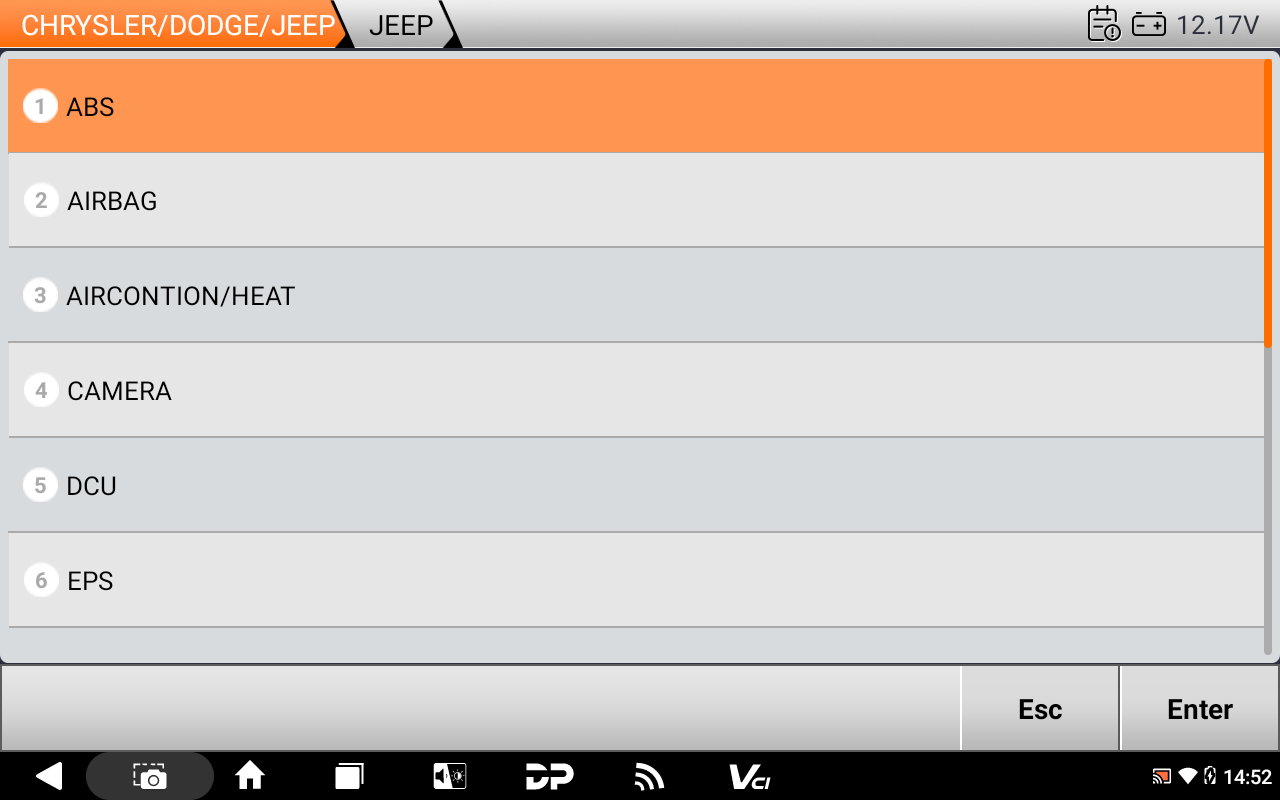

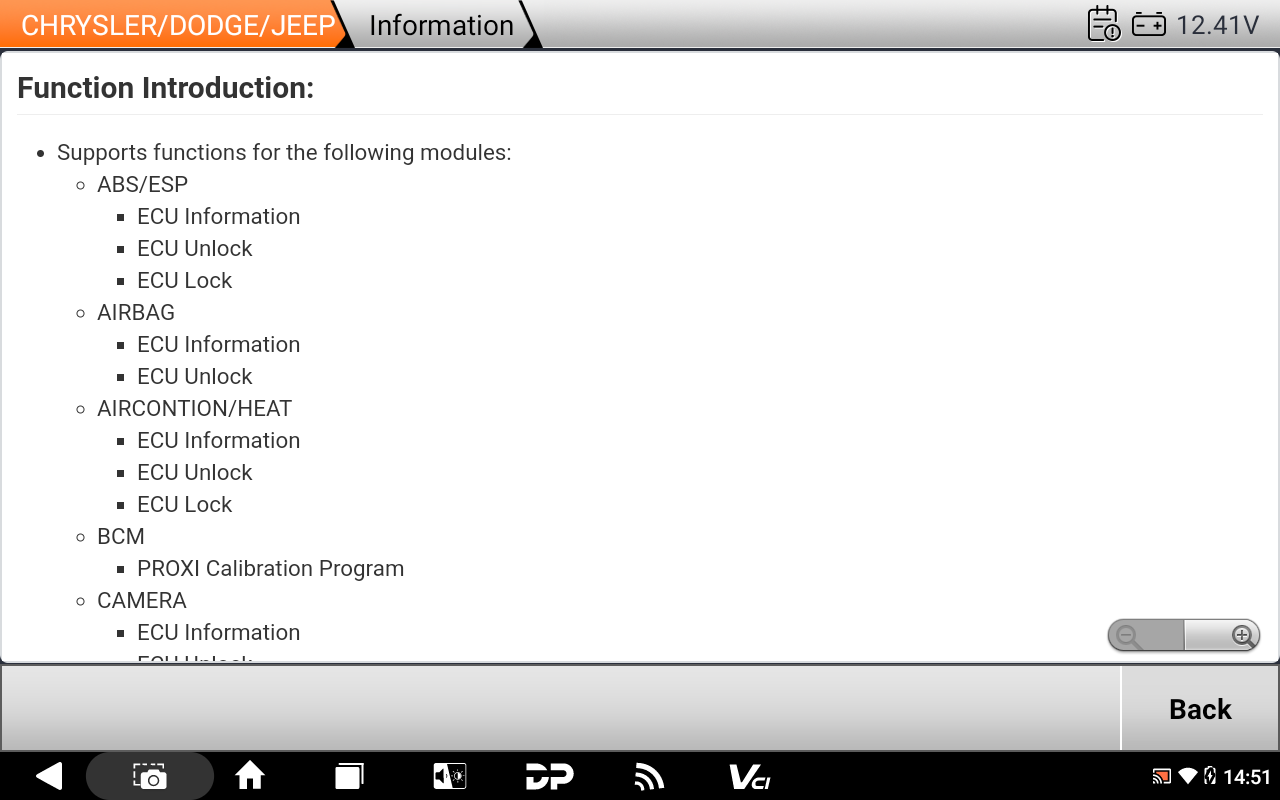

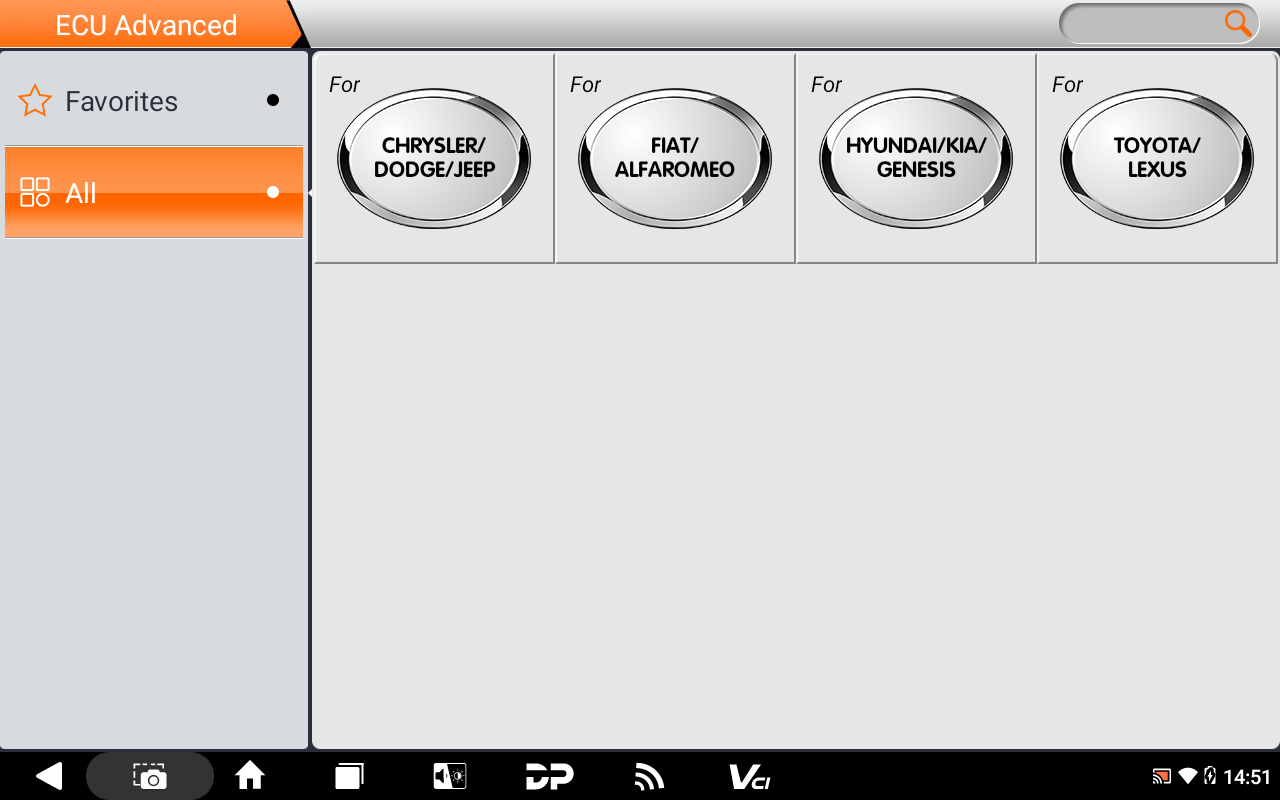

5) ECU Advanced

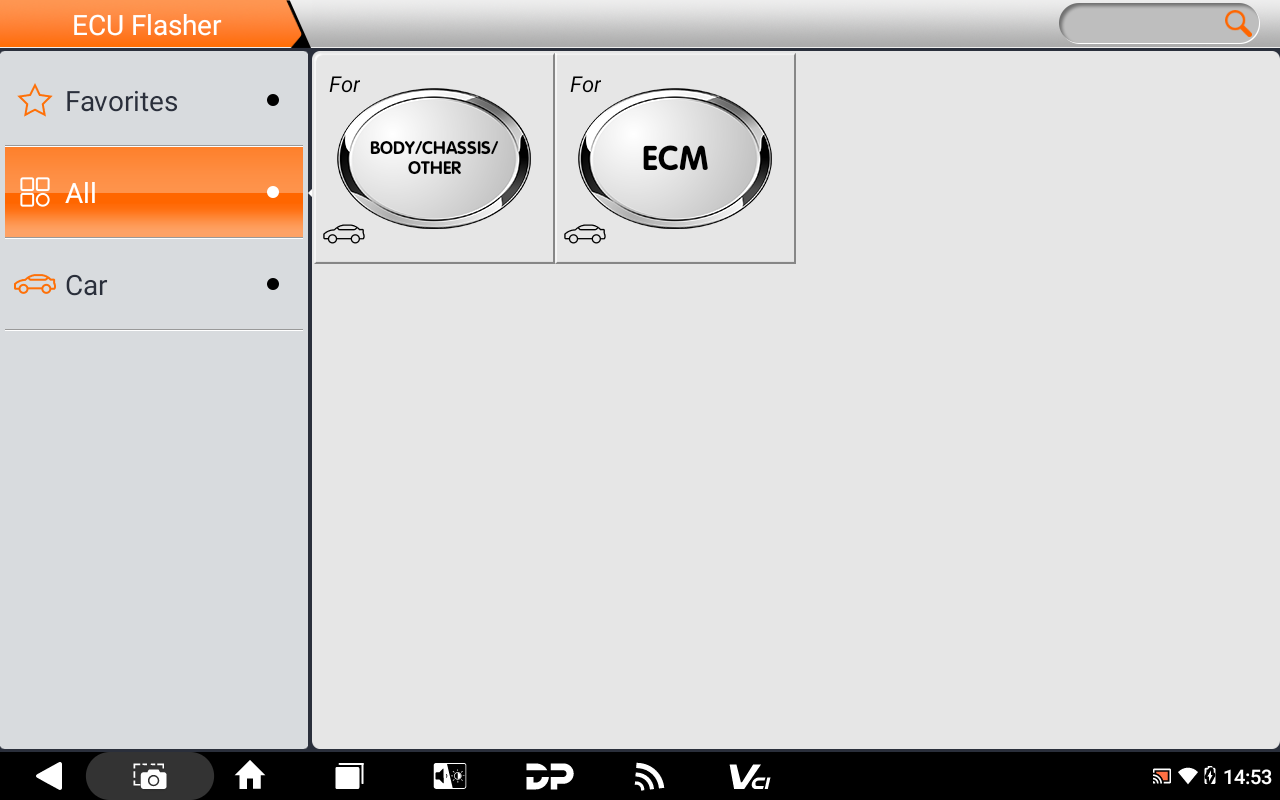

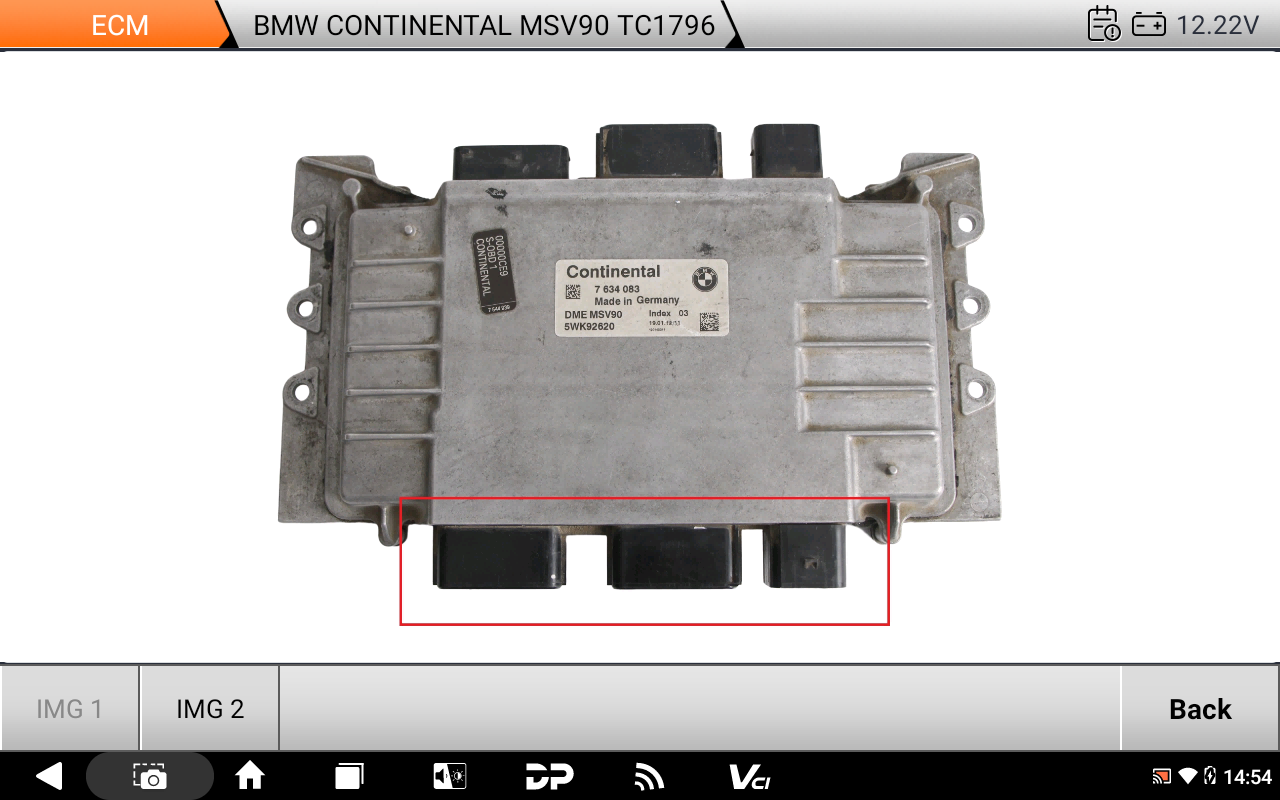

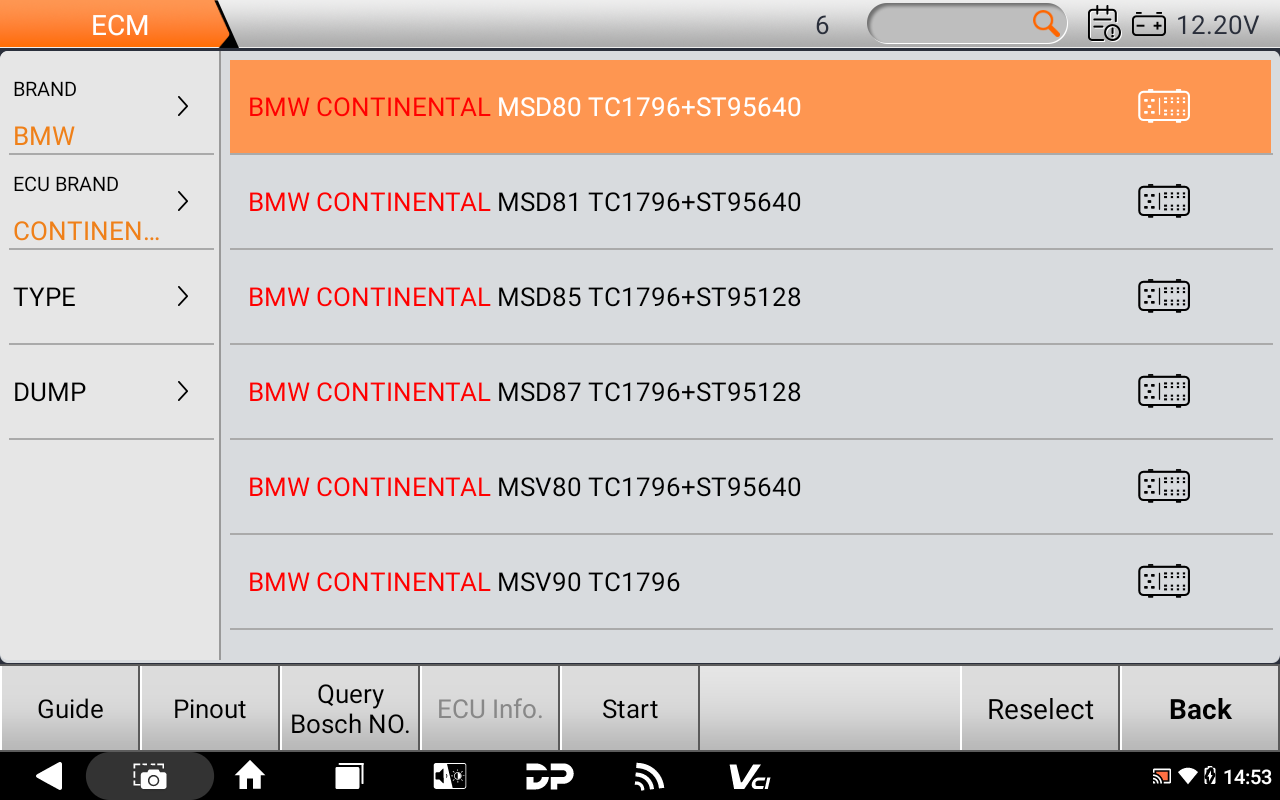

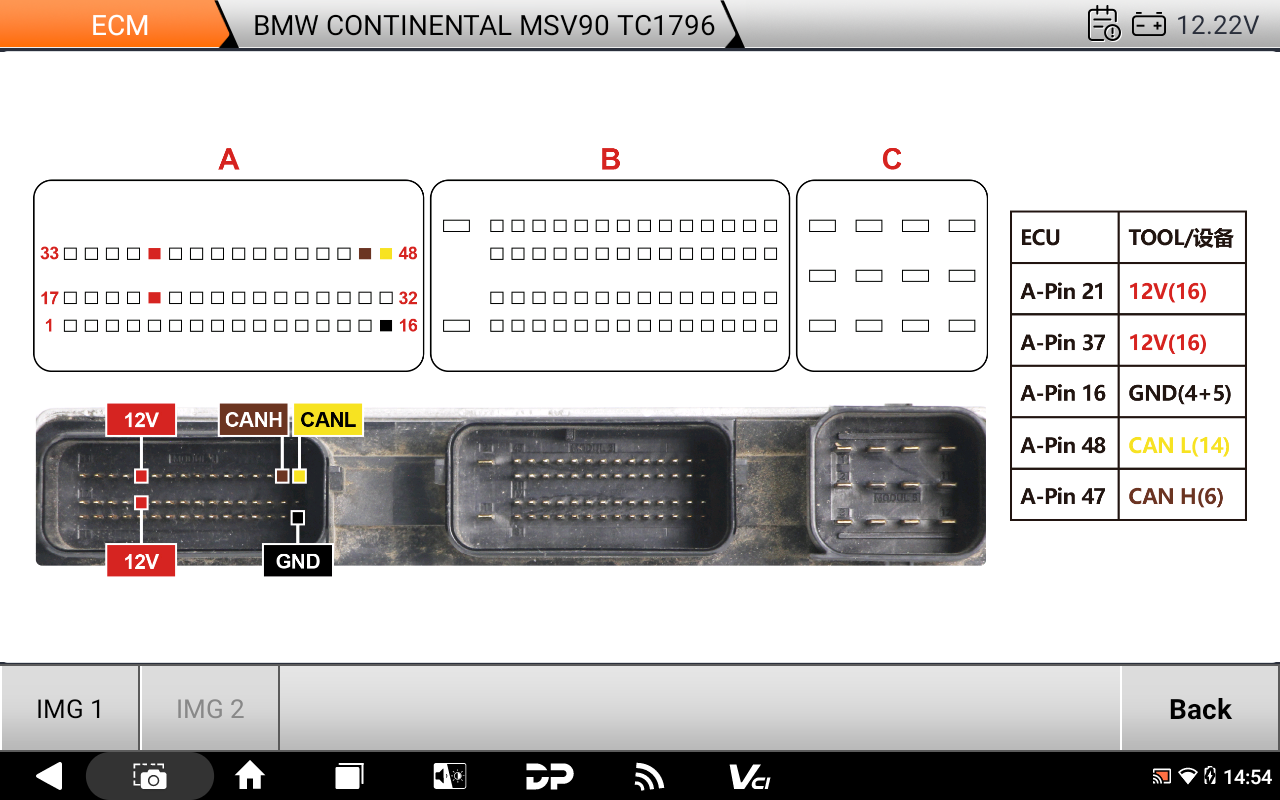

6) ECU Flasher

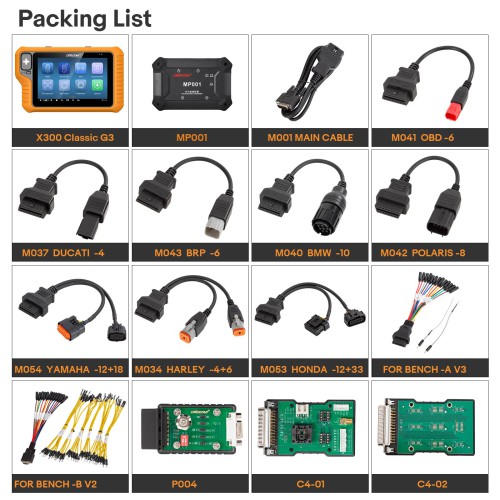

Package Includes:

1pc x X300 Classic G3 tablet
1pc x M001 main cable
1pc x charger
1pc x MP001 all-in-one programmer
1pc x W004 read/write soldering wire
1pc x W005 read/write soldering wire
1pc x C4-01 multi-function data read/write board
1pc x C4-02 eight-pin chip(IC) soldering board
1pc x BENCH-A V3 for ECM and TCM cloning functions
1pc x P004 adapter
1pc x BENCH-B V2 ECU Cloning BENCH harness
1pc x 3-in-1 jumper

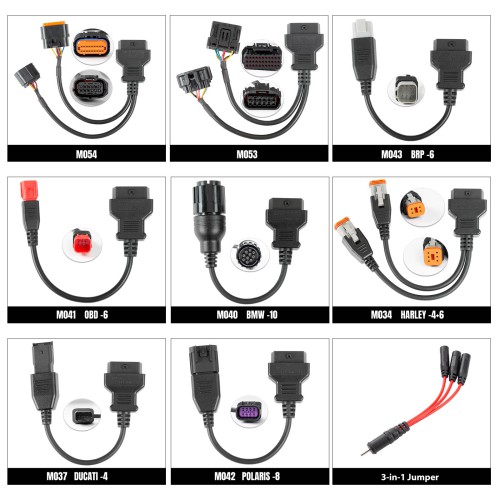

Free Gift Kits:
1pc x Key SIM + USB to Type-C Cable
1pc x M034 Harley-4+6
1pc x M037 Ducati-4
1pc x M040 BMW-10
1pc x M041 OBD-6
1pc x M042 INDIAN/VICTORY-8
1pc x M043 BRP-6
1pc x M053 HONDA IMMO
1pc x M054 SUZUKI/YAMAHA
